FR-8-1/4, Festo FR-8 series 8 station G 1/2 Manifold, Регулятор

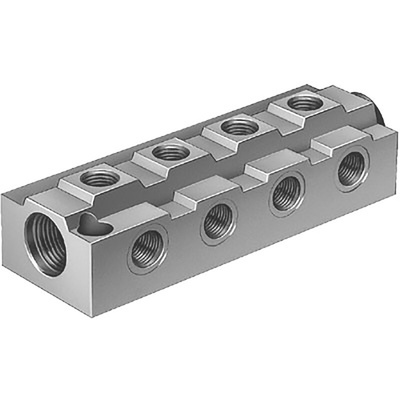

Festo Distributor Block, G 1/2 - FR Series - FR-8-1/4

This distributor block from Festo is used to divert a single compressed-air feed line to multiple devices. It has eight outlets and eliminates the need for complex air piping. The unit has connections for two supply lines, and one is sealed with a blanking plug to avoid damage when it's not in use. This component is made from die-cast aluminium that's lightweight and corrosion-resistant. You can use it with lubricated or unlubricated compressed air.

• Maximum input pressure of 16 bar
• Pneumatic connection port one of G 1/2
• Pneumatic connection port two of female thread 1/4
• Port connection thread size of 12.7 mm
• Manifold type
• Operating temperature range of -10°C to +60°C
• Overall dimensions of 144 (length) x 34 (width) x 35 mm (height)
• Can be assembled in any position

Range Information

• Manifolds in the Festo FR series are available with four, eight or nine connections and can also be used in a vacuum
• These units are compatible with Festo's D series of compressed air preparation products, including filters, regulators and lubricators
• Festo also carries a range of rotary distributors for the transmission of compressed air to moving parts
