KD4-1/2-A, Festo Brass Male Pneumatic Quick Connect Coupling, G 1/2 Male 10mm Threaded, Муфта

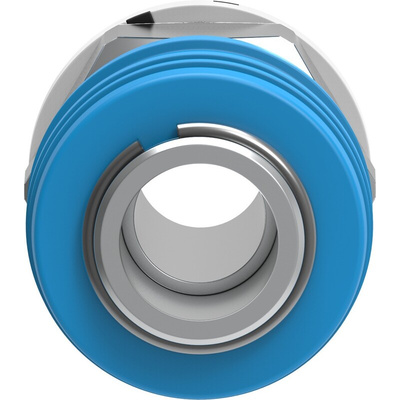

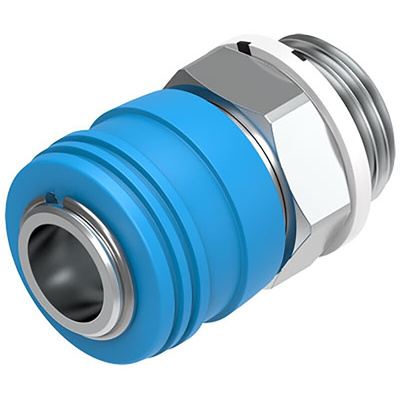

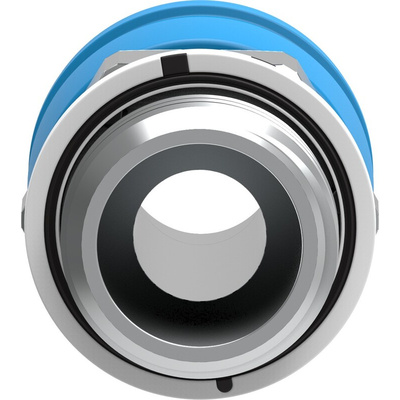

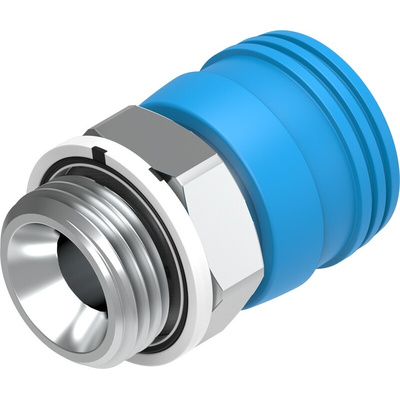

Festo Brass Male Pneumatic Quick Connect Coupling, G 1/2 Male, 10 mm - KD4 Series - KD4-1/2-A

If you need to make a sealed connection in a pneumatic system, this quick-connect coupling from Festo will let you make a reliable joint at speed. It can be used at temperatures ranging from -10˚C up to +60˚C, making it suitable for use in a wide range of industrial environments. The fittings are designed to accept tubing, hose or pipe. One connection is a G 1/2 male thread, while the other is a 10 mm hose barb connection.
With quick-connect couplers such as this, you can rapidly make a sealed connection that won't reduce the pressure a pneumatic system needs to function. This means systems can be modified quickly and easily, so downtime is kept to a minimum and workflows are more efficient.

• Built for reliability and is compatible with most standard installations
• Nickel-plated brass construction is resistant to corrosion
• Maximum operating pressure of 12 bar means it can be used in highly pressurised systems
• Contains no more than minimal levels of substances such as cadmium and mercury

Datasheet

KD4-1/2-A Specification Sheet
