KD2-M5-A, Festo Brass Male Pneumatic Quick Connect Coupling, M5 Male, Муфта

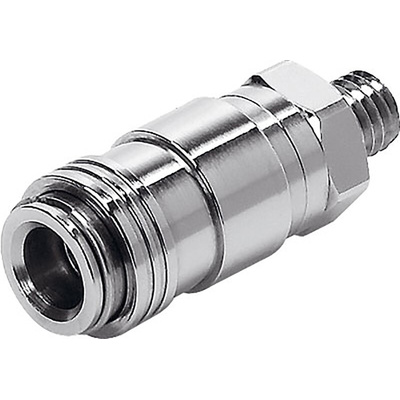

Festo Pneumatic Quick Connect Coupling, Brass, M5 Male - KD2 Series - KD2-M5-A

Make an efficient and safe pneumatic hose connection with this quick-connect coupling from Festo. It's made from nickel-plated brass, which is highly resistant to corrosion and helps ensure the product has a long working life. The coupling forms a tight seal between hoses to prevent loss of pressure and the subsequent risk of pneumatic machinery malfunctioning. It's easily locked by pushing the plug into the socket – you'll know when it's properly engaged when you hear a click. This socket is particularly robust and suited to harsh industrial applications.

• Flow rate range of 68 l/min to 139 l/min
• Nominal size of 2.4 mm
• M5 male threaded connection
• Operating pressure complete temperature range of -0.95 to 12 bar
• Operating temperature range of -10°C to +60°C

Range Information

• The plug-in couplings with quick coupling sockets from the Festo KD2 series shut-off at one or both ends
• These units mate with the Festo range of KS quick coupling plugs. To unlock simply press down on the releasing sleeve
• This range of sockets is supplied with male or female threads. You have a choice of either quick connectors or barbed fittings, which both create a tight seal between the tube and the fitting

Festo Pneumatic Quick Connect Coupling

Datasheet

KD2-M5-A Specification Sheet
