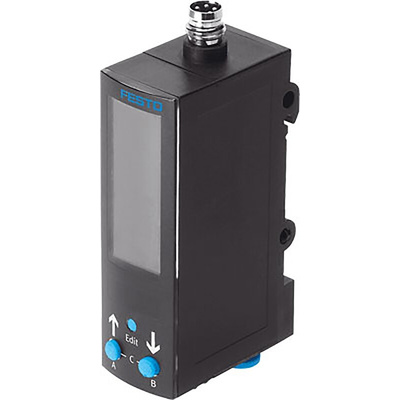

SDE3-V1D-B-HQ4-2P-M8, Festo Pressure Sensor, 30V dc, IP65 0 bar

Festo Pressure Sensor, 30V DC, -1 to 0 Bar - SDE3-V1D-B-HQ4-2P-M8

This pressure sensor from Festo is designed for sensing differential pressure in pneumatic systems. With a pressure range of between -1 and 0 bar, the unit is suitable for vacuum pressure detection. It has a high-contrast, two-colour liquid-crystal display (LCD) screen so you can get clear readings, even in low-light conditions. You can also lock it with a code to prevent unauthorised access, so your setup is safe from tampering.

• Wide operating temperature range between 0°C and +50°C for use in demanding environments
• Intuitive prompting system with fast teach-in function for automated operation
• Supply voltage of 30V DC (direct current) suitable for steady power delivery
• IP65 (ingress protection) rating indicates resistance to dust and low-pressure jets of water from all directions

Applications

• Aerospace equipment
• Pharmaceutical production facilities
• Chemical processing plants

How do I install this component?

This pressure sensor is easy to install as it's designed for simple, tool-less mounting. It has a 4mm push-in connector that you can plug directly into an H-rail. You can also mount it on a front panel via the same means.

Datasheet

Catalogue - Pressure Sensors SDE3

Datasheet - SDE3-V1D-B-HQ4-2P-M8

Instruction Sheet - SDE3-V1D-B-HQ4-2P-M8
