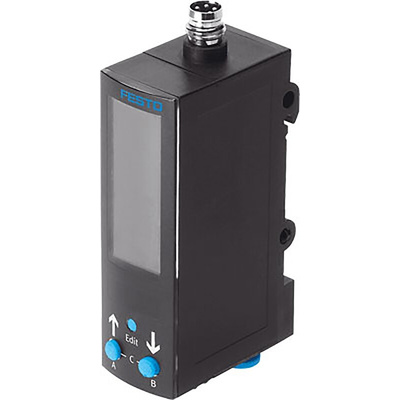

SDE3-D10S-B-HQ4-2P-M8, Festo Pressure Sensor, 30V dc, IP65 10bar

Festo Pressure Sensor

The Festo SDE3 series pressure sensor is designed to monitor the pressure of compressed air, sensing relative and differential pressure. It has a switchable element function with normally open or normally closed contact. There are two independent pressure inputs and a two-colour LED display all in one unit.

Features and Benefits

• The pressure sensor works on a 30V supply voltage


• Pressure measuring range of 0bar to 10bar


• This sensor has a push-in connector of 4mm via an H rail and has front panel mounting


• There is a code lock on the sensor to prevent tampering or any changes


• Alphanumeric pressure display on the sensor for ease of use, via a bar chart

Applications

The FESTO pressure sensor can be used in a number of industrial applications including
• Network and regulator monitoring
• Air-pressure test
• Object detection via back pressure

Pressure Sensor SDE3-D10S-B-HQ4-2P-M8

• QS-4 pneumatic connection


• Service temperature ranges between 0°C and 50°C


• Freely programmable switching function


• 2 PNP switching electrical output


• M8x1 4-pin plug connector electrical connection

Datasheet

SDE3-D10S-B-HQ4-2P-M8 Specification Sheet
