SDE3-D10D-B-HQ4-2P-M8, Festo Pressure Sensor, 15 → 30V, IP65 10 bar

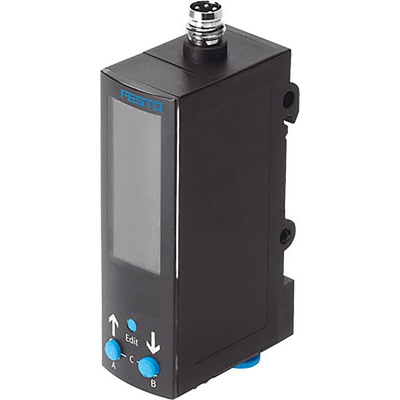

Festo Pressure Sensor

The Festo SDE3 series pressure sensor is designed to monitor the pressure of compressed air, sensing relative and differential pressure. It has a switchable element function with normally open or normally closed contact. There are two independent pressure inputs and a two-colour LED display all in one unit.

Features and Benefits

• The pressure sensor works on a 30V supply voltage


• Pressure measuring range of 0bar to 10bar


• This sensor has a push-in connector of 4mm via an H rail and has front panel mounting


• There is a code lock on the sensor to prevent tampering or any changes


• Alphanumeric pressure display on the sensor for ease of use, via a bar chart

Applications

The FESTO pressure sensor can be used in a number of industrial applications including
• Network and regulator monitoring
• Air-pressure test
• Object detection via back pressure

Pressure Sensor SDE3-D10D-B-HQ4-2P-M8

• QS-4 pneumatic connection


• Service temperature ranges between 0°C and 50°C


• Freely programmable switching function


• 2 PNP switching electrical output


• M8x1 4-pin plug connector electrical connection

Datasheet

SDE3-D10D-B-HQ4-2P-M8 Specification Sheet
