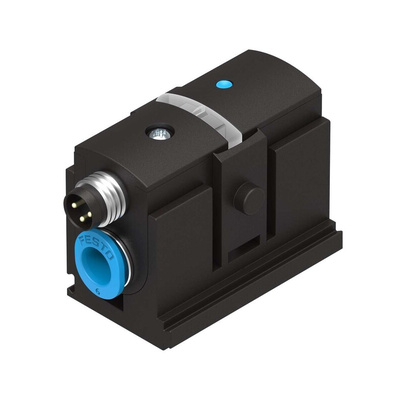

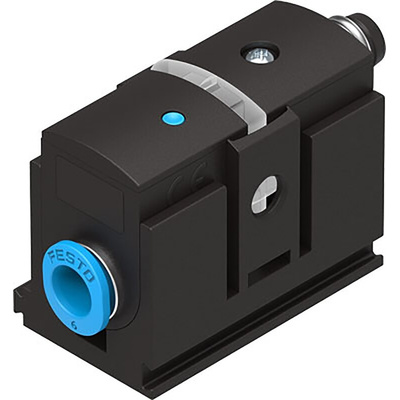

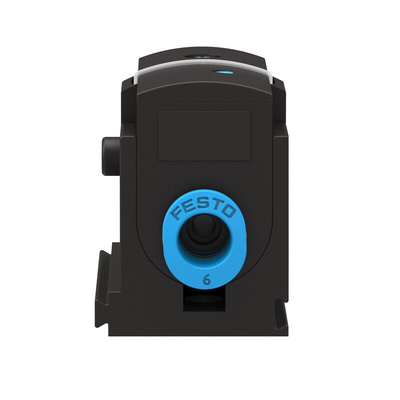

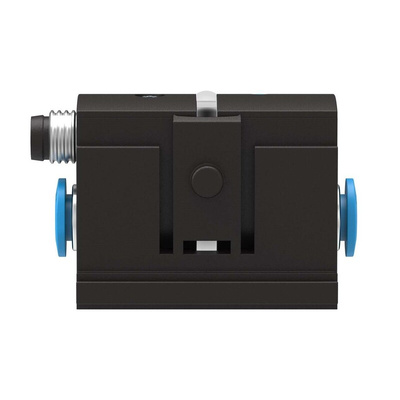

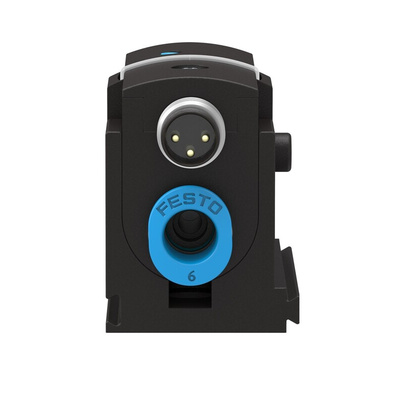

SDE5-D10-O2-Q6-P-M8, Festo Pressure Sensor, 30V dc, IP40 10bar

Festo Pressure Sensor, 3-Pin M8 Connection, 15 to 30V DC Operating Voltage - SDE5-D10-O2-Q6-P-M8

Maintain pressure levels in your pneumatic system with this intelligent Festo pressure sensor. It's a versatile solution that's used in pressure regulation, vacuum detection and when monitoring compressed air. As it's an electric pressure sensor, you can prevent pressure build-up with your own switching hysteresis customisation, meaning you can set what pressure your pump will turn off and when it'll turn back on again. This unit measures pressure using a piezoresistive strain gauge system to provide you with accurate readings you can rely on.

• Integrated QS fittings and a standard 3-pin M8 plug connection for simple installation
• IP40 rating means it's protected from tools and wires bigger than 1mm
• Measures up to 10 bar to suit mid-weight pneumatic air-consuming devices
• Easy-to-use button to make switching-point adjustments

Applications

• Wastewater treatment
• Automotive industry
• Manufacturing facilities
• Agricultural machinery

Can I use this pressure sensor in very hot conditions?

This unit has an operating temperature range of 0°C to +50°C, so it's suitable for use in demanding industrial settings where hot conditions are expected.

Datasheet

SDE5-D10-O2-Q6-P-M8 Specification Sheet

Instruction Sheet - Pressure sensor
