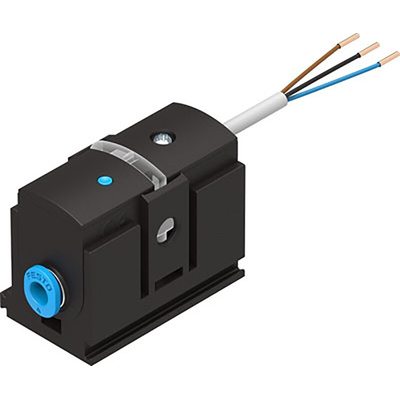

SDE5-D10-FP-Q4E-P-K, Festo Pressure Sensor, 35V dc, IP40 10bar

Festo Pressure Sensor

The Festo SDE5 series pressure sensor is designed to monitor pressure of compressed air. It works on 30V supply voltage. The sensor measures the pressure in range of 0bar to 10bar. It has a switchable element function that is freely programmable. This has a pneumatic connection at one end for standard outside diameter tubing of diameter 4mm. It has high contrast, two colour LCD display.

Features and Benefits

• Service temperature ranges between 0°C and 50°C
• Input signal converted to digital switching signal
• Switching electrical output is PNP type
• Accuracy is ±0.5% FS
• 2.5m long, 3 core cable electrical connection
• LED indicator for switching status

Applications

• Network and regulator monitoring
• Object detection via back pressure

Certifications

• cULus approved
• CE certified
• IP40 rated

Datasheet

SDE5-D10-FP-Q4E-P-K Specification Sheet
