B13B-XASK-1N (LF)(SN), JST XA Series Through Hole PCB Header, 13 Contact(s), 2.5mm Pitch, Shrouded, Разъем

JST Crimp Tool

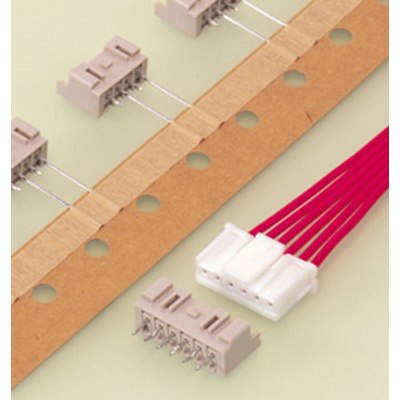

The JST XA series through-hole type male connector without a boss has 13-pin in one row with a 2.5mm pitch. It has a voltage rating of 250VAC/DC and a current rating of 3A. This device has a shroud. This connector has 1Mohm insulation resistance and can withstand up to 1000VAC/min.

Features and Benefits

• Contact length-post is 3.40mm
• Contacts are made from copper alloy and plated with tin over copper
• Low insertion force
• Operation temperature ranges between -25°C and 85°C
• Polyamide (PA66) and nylon 6/6 material used for housing
• Straight body orientation
• Uses solder termination method
• Wire size ranges between 20AWG and 28AWG
• Wire-to-board connector type

Applications

• Automatic board mounting machines
• Secure locking devices

Certifications

• E60389
• LR 20812 certified
• R9851220
• UL94 V-0 approved
