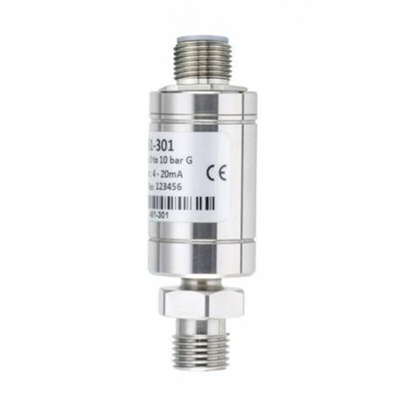

RS PRO Pressure Sensor, 0bar Min, 50mbar Max, Analogue Output, Relative Reading, Датчик давления

RS PRO Pressure Sensor, 50 mbar Maximum Pressure Reading, Analogue

This pressure sensor from RS PRO converts a pressure reading into an easy-to-read analogue signal. It offers high accuracy for exacting pressure control and has almost immediate response times. You can use a sensor like this to measure the pressure in an engine or monitor fluid levels in tanks.
The unit's stainless steel housing means it can be used with various fluids, including chemically abrasive ones, without being negatively affected. It handles shock and vibration exceptionally well, so its accuracy is guaranteed, even in demanding industrial conditions. This versatile component is well-suited to many pressure sensing applications and can be used for rainwater harvesting, laboratory testing and in agricultural and automotive equipment. Its IP67 (Ingress Protection) rating makes it completely protected from dust and dirt and means it's capable of being submerged in water for up to 30 minutes.

Features and Benefits

• Accuracy of ±0.25%
• Analogue output of 4 mA to 20 mA
• Electrical connection size of M12
• Stainless steel housing
• Maximum current of 20 mA
• Operating temperature range of -20°C to +80°C
• Pressure reading range of 0 bar to 50 mbar (millibar)
• Thread mounting
• Analogue output type
• Relative pressure reading type
• G1/4 process connection
• Supply voltage of 9 V DC to 32 V DC

RS PRO Datasheet
