RS PRO Pressure Sensor, 0bar Min, 0.1bar Max, Analogue Output, Relative Reading, Датчик давления

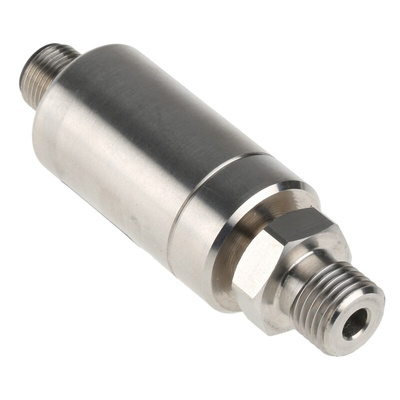

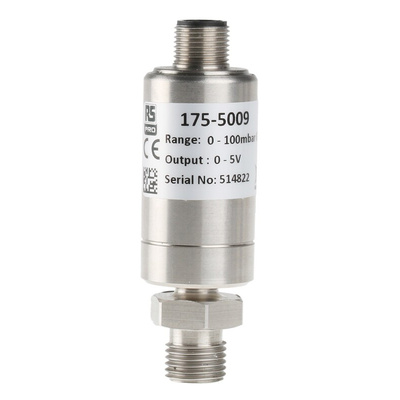

RS PRO Gauge Pressure Sensor

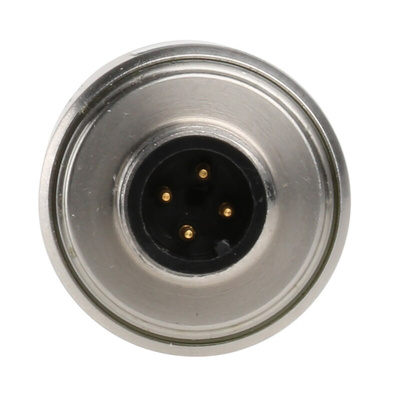

The RS PRO IPS-M12 series low range pressure sensor has a housing made from 316L stainless steel with viton O-ring seals. It uses a piezo-electric silicon sensor. The nominal pressure output of this sensor ranges from 50mbar to 1000bar. It has a 4-pin connector.

Features and Benefits

• Service temperature ranges between -20°C and 80°C
• Accuracy is less than ±0.25% FS BFSL
• Pressure rating ranges from 0mbar to 100mbar G (3-wire)
• Threaded mounting

Applications

• HVAC
• Pneumatics
• Laboratory testing
• Agricultural machinery

Certifications

• CE certified

RS PRO Datasheet
