RS PRO Pressure Sensor, 0psi Min, 150psi Max, Analogue Output, Relative Reading, Датчик давления

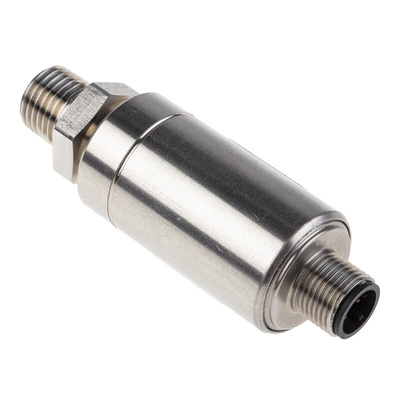

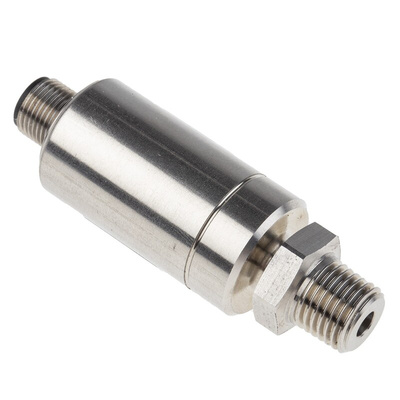

RS PRO Gauge Pressure Sensor

The RS PRO IPSU-M12 series pressure sensor has a housing made from 316L stainless steel with viton O-ring seals. It uses a piezo-electric thick film ceramic sensor. The nominal pressure output of this sensor ranges from -14.5psi to 5800psi. It has a 4-pin connector.

Features and Benefits

• Service temperature ranges between -20°C and 80°C
• Accuracy is less than ±0.25% FS BFSL
• Pressure rating ranges from 0psi to 150psi G (3-wire)
• Threaded mounting

Applications

• Temperature testing facilities
• Process control
• Automation
• Industrial measurement

Certifications

• CE certified

RS PRO Datasheet
