9575.00305, Belden 2 Core Power Cable, 305m, Red PVC Sheath, 11 A, 300 V

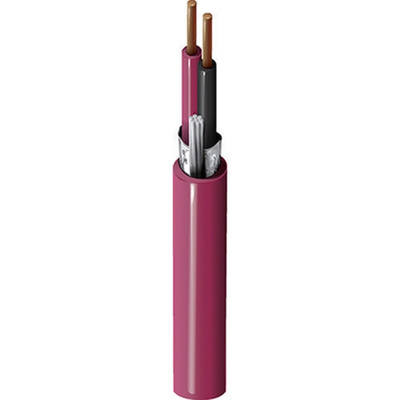

The Belden 9575.00305 lighting and electric cable is flexible and durable constructed for reliability. Featuring a fire alarm, power-limited fire protective signalling circuit cable and containing two 16 AWG solid bare copper cores with PVC insulation, screened with an aluminium/polyester tape shield and a Red PVC outer jacket.

Features and Benefits:

The Beldfoil shield provides 100 percent shield coverage for improved protection against radiated emissions and ingress at audio and radio frequencies.
PVC insulated and sheathed offering durability and protection in harsh environments.
The Polyvinyl Chloride outer jacket material means the cable is durable, UV resistant and exhibits good resistance to chemicals and water.
Voltage UL:Voltage Rating 300 V RMS
Temperature Range: UL Temp Rating: 105°C Operating Temp Range: -40°C To +105°C

Certifications and Standards

NEC Articles: 760
NEC/(UL) Specification: CMR, FPLR
CEC/C(UL) Specification: FAS105
UL AWM Style: UL Style 2464 (300 V 80°C)
CPR Euroclass: Eca
Other Specification: California State Fire Marshall

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing:

UL Flammability: UL1666 Vertical Shaft
CSA Flammability: FT4
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS
