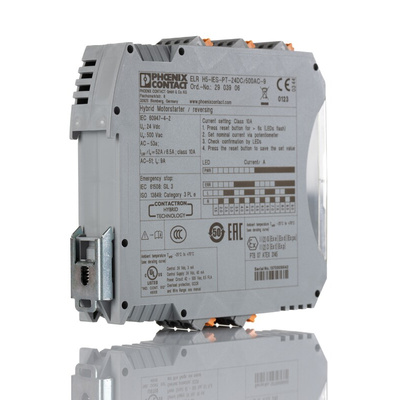

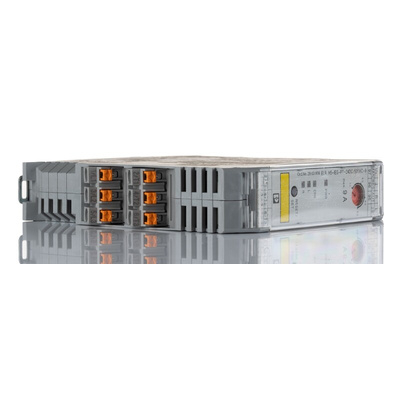

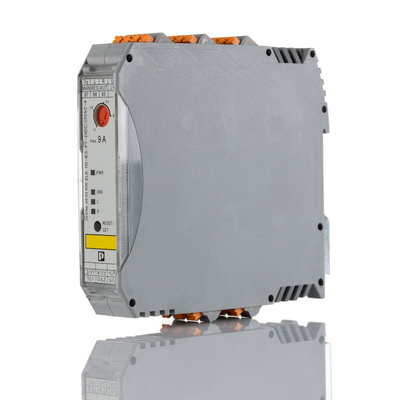

2903906, Phoenix Contact Motor Starter, Reversing, 24 V dc, 3 Phase, IP20, 9 A

Phoenix Contact Motor Starter, 9A Current Range, 24V DC Control Voltage - ELR H5-IES-PT- 24DC/500AC-9 - 2903906

Get your system up and running smoothly with this motor starter from Phoenix Contact. It's designed to get three-phase factory and plant machinery started reliably every time, and is particularly useful where a motor may need to be reversed, such as in a conveyor belt.
The unit is a versatile four-in-one hybrid solution that incorporates forward and reverse run, overload protection and emergency contractor into a single module for convenience and simplicity. The overload protection is adjustable and will shut the motor down to prevent damage in the event of an abnormal load, so you can rest easy knowing your equipment is protected.
This product is suitable for mounting on a DIN rail and has integrated circuits, so it's quick and easy to install, with no time-consuming wiring needed. It's also ATEX-approved, meaning it's certified as safe to use in potentially explosive atmospheres, such as those you'd expect in chemical manufacturing facilities.

Features & Benefits

• Compact size of 22.5 (W) x 107.4 (H) x 113.7mm (D), so it fits in tight spaces
• Broad operating temperature range of -25°C to +70°C for use in tough environments
• IP20 rating indicates protection against accidental touch and dust

Standards

EN 60947, EN 50178, IEC 61508, ISO 13849
PTB 07 ATEX 3145

Datasheet 2903906

Contactron Hybrid Motor Starters

2903906 Installation Instructions

2903906 Application Note
