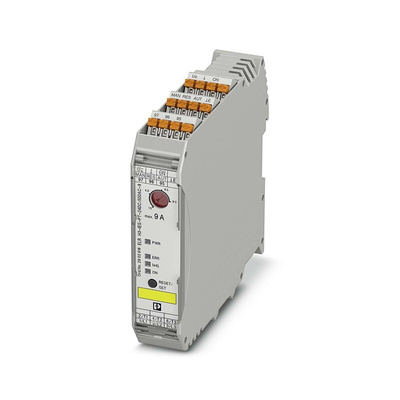

2903918, Phoenix Contact Motor Starter, 9 A

The ELR H3,ATEX approved hybrid motor starters from Phoenix Contacts give you an alternative to the traditional mechanical contactor circuits.
The forward running motor starters are designed for DIN Rail mounting and for starting 3 phase motors up to 500 V ac where adjustable overload shutdown and emergency stop function to safety integrity level 3 (SIL 3) and performance level E (PL e).

Features and Benefits
• ATEX approved
• Push-in connections
• Emergency stop to SIL 3/PL e
• Adjustable overload shutdown
• Surge and reverse polarity protection
• Only 22.5 mm wide means that it needs little space
• Up to 75% less wiring time compared to conventional contactors
• Easy DIN rail mounting
• Low-wear switching
• IP20 rating meaning that it is protected against any touch by fingers greater than 12.5 mm but no protection against liquids
Standards
ATEX, IEC 60947-1, IEC 60947-4-2, IEC 61508, ISO 13849

Datasheet
