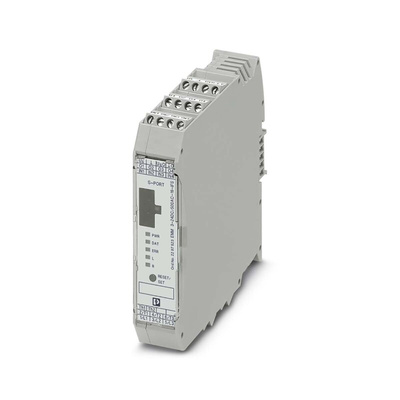

2905152, Phoenix Contact Motor Starter, 3 A

The Phoenix Contact 4 in 1, ELR-H5 series of Contactron hybrid motor starters with reversing function are designed for DIN Rail mounting and for starting 3 phase motors up to 500 V AC. It gives you an alternative to the traditional mechanical contactor circuits when you need a safety level according to IEC 61508-1: SIL 3, ISO 13849: PL e
The control commands for forward and backward running are received by a communication interface, EM-xxx-GATEWAY-IFS.

Features and Benefits
• Reverse running
• IP20 rating meaning that it is protected against any touch by fingers greater than 12.5 mm but no protection against liquids
• Motor overload protection
• Emergency stop
• Only 22.5 mm wide means that it needs little space
• Up to 75% less wiring time compared to conventional contactors
• Easy DIN rail mounting
• Wear-free fast switching
• Screw connection
• M3 screw thread
• Adjustable current for bimetal function
• Lasts up to ten times longer than a traditional mechanical switching device

Standards
EN 60947-1, EN 60947-4-2, IEC 61508, ISO 13849, ATEX II (2) G [Ex e] [Ex d] [Ex px], II (2) D [Ex t] [Ex p]
