QG030-148/12, ebm-papst QG 030 Series Tangential Centrifugal Fan, 12 V dc, 75m³/h, DC Operation, 47.5 x 201 x 50mm

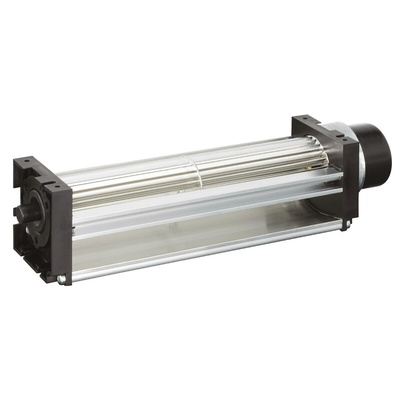

ebm-papst Tangential Blower

The ebm-papst crossflow tangential blower has an airflow of 75m³/h and a supply voltage rating of 12VDC. It has a washable filter, an internal filter guard and a front grille with fixings. The exceptional features of this are high air flows at relatively low counter pressures and very good noise characteristics. Also, the unit can be mounted either horizontally or vertically, with the motor at the bottom. This is built with high-quality solid aluminium with single wires AWG 24, TR 64 connection. It is 47.5mm long, 201mm wide and 50mm deep. This is compact and highly efficient.

Features and Benefits

Impeller made of aluminium
PSC (permanent split capacitor) motor, bearings in motor and counter-bearing are ball-bearing
Extrusion made of aluminium
End plates finished in black powder coat paint
Commutation type is electronic
Blowers with grill include filter media

Applications

stove jacket cooling
Thermal storage heaters
Overhead projectors
Tanning beds
Air-conditioning and heating units

Certifications

DIN41494
UL approved
CE certified

Crossflow blowers QG030 Data Sheet
