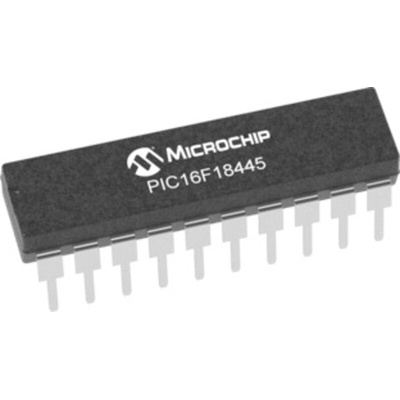

Microchip PIC16F18445-I/P, 12bit PIC Microcontroller, PIC16F, 32MHz, 14 kB Flash, 20-Pin PDIP

Microchip Technology Microcontroller

The Microchip technology PIC16F18445-I/P family type, PDIP package, surface mount, 20-pin 12-bit C-complier RISC has a maximum voltage rating of 5.5V. This operates at a maximum speed of 32MHz and features 14kb ISP flash program memory and 1kb of SRAM. The microcontroller combines programmable and reconfigurable analogue and digital blocks with flexible automatic routing.

Features and Benefits

• 12-bit ADC with computation (ADC2)
• 5-bit Digital-to-Analogue converter (DAC)
• Complementary waveform generator (CWG)
• Device Information Area (DIA)
• Enhanced mid-range core with 48 instructions, 16 stack levels
• Enhanced Power-ON/OFF-Reset
• EXtreme Low Power (XLP)
• Four 16-bit timers
• Four 8-bit timers
• Four capture, compare, PWM (CCP)
• Hardware limit timer (HLT)
• IDLE and DOZE low power modes
• In-circuit serial programming
• Low-Power Brown-Out Reset (LPBOR)
• Memory Access Partition (MAP)
• Numerically controlled oscillator(NCO)
• Operating temperature ranges between -40°C and 125°C
• Peripheral module disable (PMD)
• Peripheral Pin Select (PPS)
• Programmable Brown-Out Reset (BOR)
• Two 10-bit PWMs
• Two comparators
• Window watchdog timer (WWDT)
• Zero cross detect (ZCD)

Applications

• Embed designs
• Household appliances
• Industrial
