RS PRO Digital Bench Power Supply, 0 → 30V, 0 → 5A, 1-Output, 150W - UKAS Calibrated, Блок питания

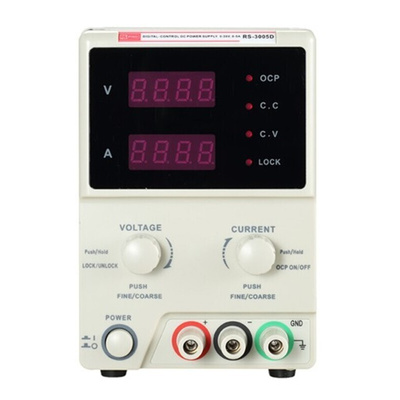

RS PRO RS3005D Digital Control DC Power Supply 0-30V, 0-5A

The RS PRO RS3005D digital control DC power supply is a user-friendly, compact & lightweight designed power supply unit with a simple to read 4 digit display of the voltage and current values and features an output voltage range of 0-30V and an output current range of 0-5A. This highly reliable and accurate power supply is suitable for various applications such as production, labs, colleges and features an intelligent temperature controlled fan with low noise and ripple. This versatile bench power supply offers a heavy duty-single channel with constant-voltage and constant linear power supply, as well as a knob lock function to prevent improper operation.

Features and benefits

• Voltage Range: 0-30V
• Current Range: 0-5A
• Complete programmable
• Industrial grade, with load for a long time
• Encoder-controlled fine & coarse adjustment
• Intelligent temperature-controlled fan
• Compact design
• Constant current & constant voltage
• Current pre-set
• 4-digital display
• 10mV / 1mA high accuracy and resolution
• Low noise and ripple
• Knob Lock function to avoid improper operation
• Input Voltage: 230 V (±10%)
• UK & Euro leads supplied

Applications?

A bench power supply is an essential piece of equipment if you do a lot of electronics or other powered projects on your bench and need a reliable source of power at different voltages. They are very useful tools in testing circuits, as they allow you to adjust the voltage to a specific value depending on what project you are working on.

The most common and versatile regulated DC power supply is the constant current (CC) or constant voltage (CV) type which as the name implies can provide either a constant current or constant voltage within a certain range.

• General laboratory
• Education
• Industry
• Research
• Production
• Workshops

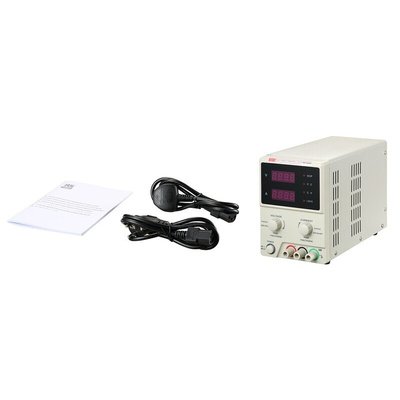

What is this device supplied with?

User manual, Power cord (1.2 m, 1 x UK plug & 1 x EURO plug for European market).

Does this device feature CC / CV?

The RS PRO RS3005D features both Constant Current (CC) and Constant Voltage (CV).

Does it have an adjustable current?

Yes this model features an adjustable current of 0-5A.

Supplied with
type":"Supplied with",

User manual, Power cord (1.2 m, 1 x UK plug & 1 x EURO plug for European market)
