4D Systems SK-gen4-24PT, Gen4 Picaso 2.4in Resistive Touch Screen Starter Kit

4D Systems Gen4 2.4in Display Module Starter Kit

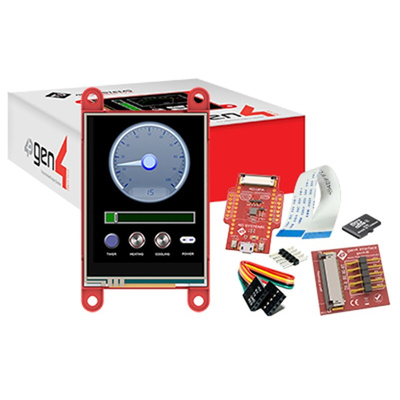

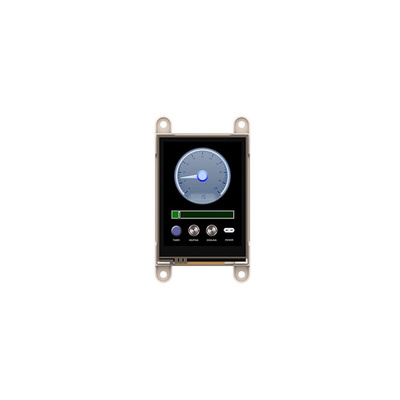

The 4D Systems Gen4 display module starter kit is a 2.4in integrated colour TFT LCD with resistive touch powered by the well-known 4D systems Picaso graphics processor, which offers an array of functionality and options for designer users. The operating supply voltage range between 4V and 5.5V. This display module includes Gen4 integrated display module, 4D Arduino adaptor shield-II, gen4-IB interface board, Gen4 Programming Adaptor (gen4-PA), 150mm 30 way FFC cable, 4GB industrial microSD card and 5-way female-to-female ribbon cable with a male-to-male adaptor.

Features and Benefits

• 13 x general-purpose I/O pins support fast 8-bit parallel data transfer through upper 8 bits
• 14kb flash memory for user application code and data
• 8 x 16-bit timers with 1msec resolution
• Built-in extensive 4DGL graphics and system library functions
• Display full-colour images with 240x320 resolution, RGB 65K true to life colours
• On-board latch type microSD memory card connector for multimedia storage and data logging purposes
• One I2C interface master
• Two asynchronous hardware serial ports, TTL interface with 300 to 600K baud

Applications

• Embedded applications
• Raspberry Pi

Resolution\t240x320
Brightness\t182 cd/m2
Controller\tPICASO
Storage Temperature\t-30°C to +80°C
Connector\t30 way FPC
Display Viewing Area (mm)\t48.96 x 36.72
Module Dimensions (mm)\t78.40 x 44.80 x 7.20
Supply Voltage\t5.0V DC
Colours\tRGB 65K

Datasheet
