TK7110, ifm electronic PT1000 RTD Sensor, 6mm Dia, 50mm Long, 4 Wire, G1/4, ±0.1 °K +145°C Max, Датчик

ifm electronic Sensor

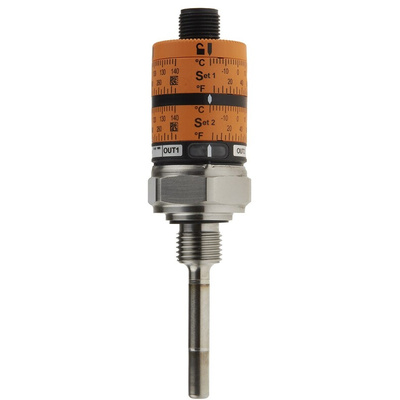

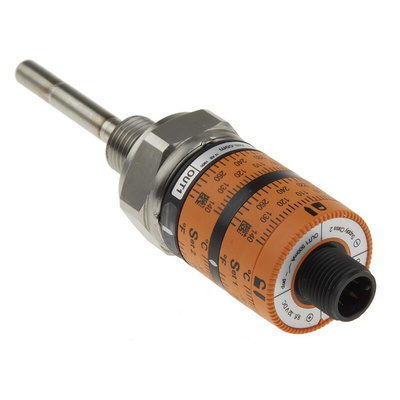

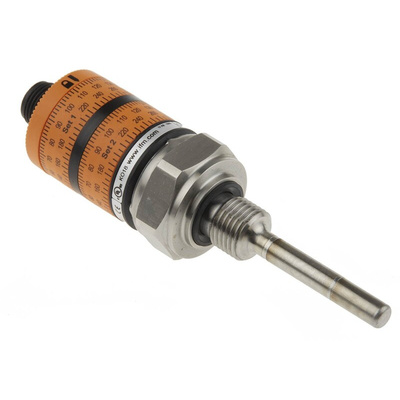

The ifm electronic 4 wire PNP RTD switch sensor is a platinum resistance temperature sensor. It has a 50mm long probe and a diameter of 6mm. It is easy to handle due to the two radial setting rings on the sensor. This enables quick and precise setting of the switch points, without system temperature being applied. The mechanical locking prevents unintentional maladjustment of the sensor.

Features and Benefits

• 1s(T05), 3s(T09) response time
• Compact in dimensions
• Good response for dynamics and very short ’power on' delay time
• Mechanical locking prevents inadvertent switch point manipulation
• Service temperature ranges between -40°C and 145°C
• Setting of the switch points without system temperature being applied
• Simple switch point setting
• Two complementary switching outputs with adjustable hysteresis

Applications

• Automobiles
• Communication and instrumentation
• Computers
• Industrial electronics

Certifications

• CE certified
• CULus listed
• DIN EN60068-2-6
• DIN EN61000-4-2
• DIN EN61000-4-4
• DIN IEC 68-2-27
• EN61000-4-3
• EN61000-4-6
• IP67 rating
• UL listed
