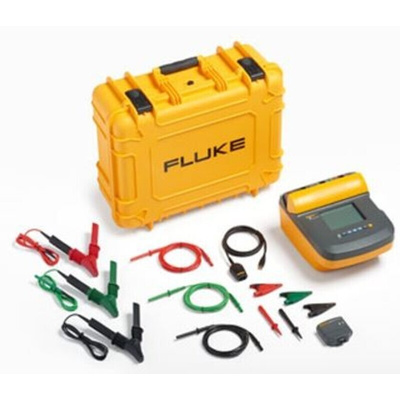

FLUKE-1555 FC Kit w/IR3000, Fluke 1555, Insulation Tester, 10000V, 2TΩ, CAT III 1000V, Измеритель сопротивления изоляции

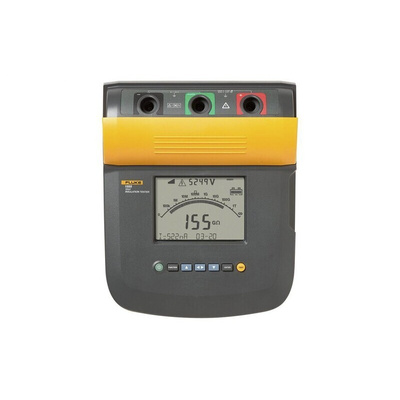

Fluke Insulation Multimeter

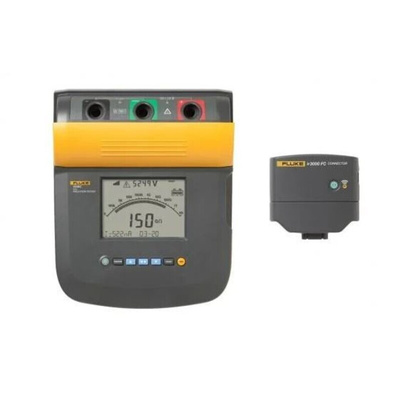

The Fluke 1555 FC 2T ohm Insulation Tester together with the IR3000 FC connector and Fluke Connect App allow users to perform advanced insulation testing by wirelessly transferring test results from the tester to Fluke Connect which eliminates error-prone paperwork and saves your technician's time.

Features and Benefits

Test voltages to up 10kV and save time by trending on the spot only with Fluke Connect
Warning function alerts the user that line voltage is present and gives the voltage reading up to 600V AC or DC for increased user safety
Selectable test voltages in 50V steps from 250V to 1000V, and 100V steps above 1000V
Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user-defined, label for easy recall
Long battery life gives the user over 750 tests between charges
Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
Large digital/analogue LCD for easy viewing
Capacitance and leakage of current measurement
Ramp function for breakdown testing
Resistance measurements up to 2Tohm
Timer settings up to 99 minutes for timed tests

Applications

Electrical system
Industrial
Commercial

Certifications

CAT III 1000 V
CAT IV 600 V
CE certified
CSA certified
IEC 60529
IEC 61010-1
IEC 61010-2-033
IP40

Datasheet

Contains SVHC - Lead - CAS No. 7439-92-1
