704.900.4, EAO 704 Series Contact Block for Use with Series 04 Switches, 500V ac, 1CO, Контактный блок

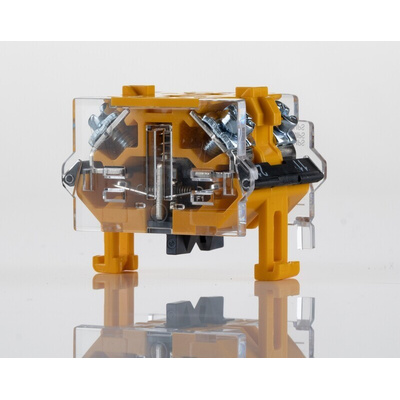

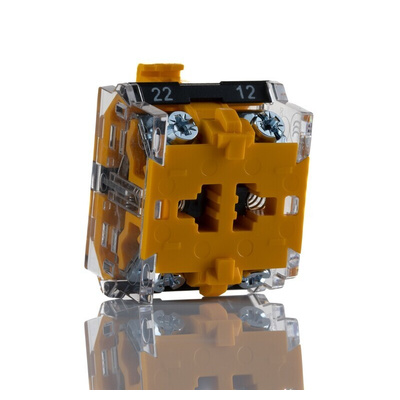

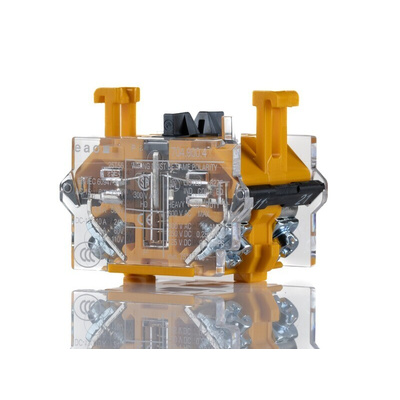

EAO Modular Switch Contact Block, 28g Weight, 10A Current Rating - 04 Series - 704.900.4

Need to control power in your industrial environment at the push of a button? Turn to this modular switch contact block from EAO. Its snap-action mechanism means it acts almost instantly to open or close your circuit faster than you can click your fingers. As it has a voltage rating of 500V AC and a current rating of 10A, it's an ideal choice for high-power applications. It's a versatile piece of kit as you can match it up with other components from the 04 series, such as a terminal cover (903-9347) or a modular switch lamp (279-0020).

Features & Benefits

• Silver contacts are highly conductive and corrosion-resistant for an efficient connection
• Screw termination makes wiring easy without the need for specialist tools
• Low weight of 28g to place minimal strain on your equipment

Applications

• Process and packaging equipment
• Industrial beverage mixers
• Machine automation operations

What are the dimensions of this unit?

This unit has compact dimensions of 37 (H) x 23 (W) x 29mm (D), so it's a suitable option for use where space is at a premium.
