AKM45US24, XP Power 45W Power Brick AC/DC Adapter 24V dc Output, 2A Output, Блок питания

XP Power Supply

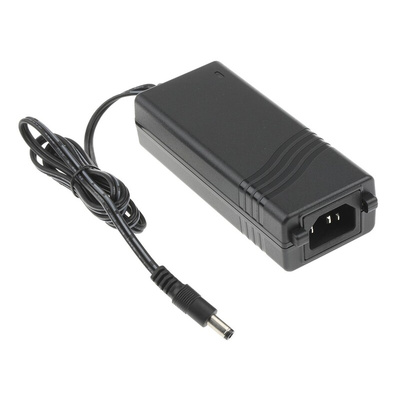

The XP Power is a 24VDC power supply, of 45W that provides continuous output power. The power supply is a high-quality compact enclosure suitable for many general power applications. It has an input frequency of 47-63Hz. While the input voltage range is 90-264VAC (wide range). Its maximum input current is 1.3A. It gives fully regulated output and most importantly, is short circuit protected. It is a reliable product with high MTBF of 250kHrs. The plug type is C8. Thermal protection is of latching type. The desktop power supply overall cable length is 1000mm. It has low power consumption, less than 0.075W. The PSU would be a suitable power source for a large range of PCs except for high tech desktop. The PC power supply units can be interchanged, provided the technical specifications of the appliance meet the PSU's in terms of safety and usability.

Features and Benefits

• Universal AC input
• Fully regulated output
• Overvoltage and short circuit protected
• High-efficiency
• LED power good indicator
• AC input fuse
• Operating temperature ranges between 0°C and 60°C

Applications

• Commercial information technology equipment (ITE)
• Small items or applications, like laptops and CCTV cameras
• Networking and peripherals
• Gaming machines

Certifications

• EN60950-1
• EN60601-1
• IEC60950-1
• IEC60601-1
• IEC320-C8
• UL60950-1
• CE LVD
• UL ANSI/AAMI ES 60601-1
• CSA C22.2 No. 60601

Datasheet
