RS PRO Axial Fan, 230 V ac, AC Operation, 387.4m³/h, 28W, IP55, 172 x 150 x 38mm, Вентилятор

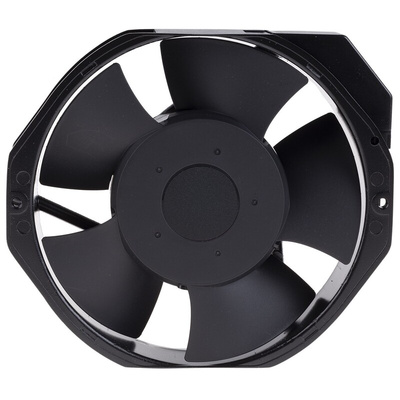

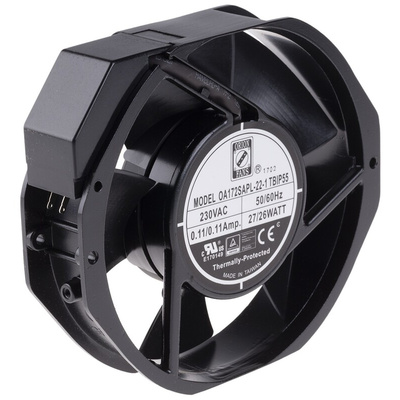

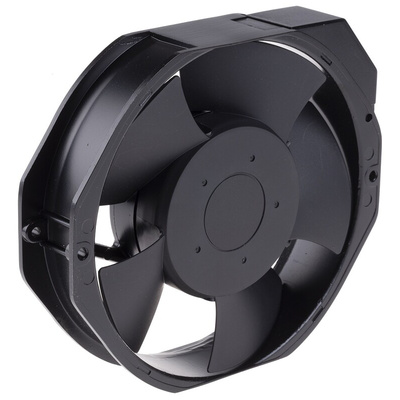

RS PRO AC Axial Fan, 387.4 m³/h, 230 V

Apply this RS PRO axial fan to your electrical machinery to cool it down and keep it running smoothly. Its Ingress Protection (IP) rating of IP55 means it's safe to use in wet or humid environments.
The dual ball bearing system can withstand temperatures of up to +80°C, so it's ideal for use on equipment that's prone to overheating. The fan has a moderate noise level of only 58 decibels (dB) – on par with normal conversation – despite its very high speed of 3400 rpm (revolutions per minute), meaning it provides a lot of air circulation without creating a loud, distracting workplace.
As part of the RS PRO range, this product fan has been tested to ensure it's of first-rate quality. It also complies with the Restriction of Hazardous Substances (RoHS) and contains only minimal amounts of any harmful materials.

Features and Benefits

• AC operation
• Air flow of 387.4 m³/h
• Dimensions of 150 (height) x 172 (width) x 38.5 mm (depth)
• Fan speed of 3400 rpm
• Ingress Protection (IP) rating of IP55
• Noise level of 58 dB
• Power consumption of 28 W
• Capacitor drive motor
• Dual ball bearing
• Thermally protected motor
• Static pressure of 0.87 in H2O
• Supply voltage of 230 V AC
• Lead wire termination type

The RS PRO AC Axial Fan uses electrical machinery to cool it down and keep it running smoothly. It has frame made of aluminium diecast and once installed it offers the perfect cooling solution with reliability and quality.

Capacitor Drive Motor
Dual Ball Bearing
Impedance Protected Motor

RS PRO Datasheet
