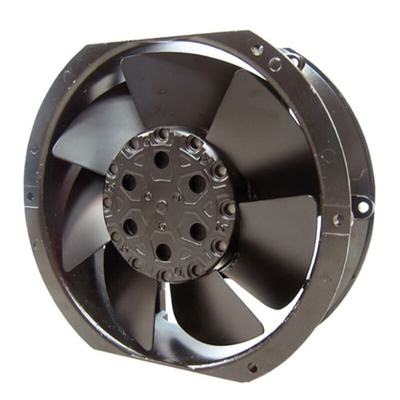

RS PRO Axial Fan, 230 V ac, AC Operation, 356.8m³/h, 42W, IP55, 172 x 150 x 51mm, Вентилятор

RS PRO AC Axial Fan, 356.8 m³/h, 230 V

Use this RS PRO axial fan to cool down your equipment so it continues to run smoothly. It can handle temperatures of up to +80°C, so it works with high-powered devices.
This fan provides a high level of air circulation thanks to its 3100 rpm (revolutions per minute) speed. It operates at only 58 decibels (dB), about as loud as normal conversation, meaning it won't create excessive noise in your workplace.
The fan has an Ingress Protection (IP) rating of IP55, indicating it's sealed against harmful dust and water jets, so you can use it in harsh or wet environments. It also conforms to the Restriction of Hazardous Substances (RoHS), so it contains no more than trace amounts of any potentially harmful materials.

Features and Benefits

• AC operation
• Air flow of 356.8 m³/h
• Dimensions of 150 (height) x 172 (width) x 51 mm (depth)
• Backward direction of curve
• Round fan housing shape
• Fan speed of 3100 rpm (revolutions per minute)
• Ingress Protection rating of IP55
• Noise level of 58 dB
• Power consumption of 42 W
• AC capacitor drive motor
• Dual ball bearing
• Thermally protected motor
• Static pressure of 0.49 in H2O
• Supply voltage of 230 V AC
• Lead wire termination type

The RS PRO AC Axial Fan uses electrical machinery to cool it down and keep it running smoothly. It has frame made of aluminium diecast and once installed it offers the perfect cooling solution with reliability and quality.

Capacitor Drive Motor
Dual Ball Bearing
Impedance Protected Motor

RS PRO Data Sheet 2019

RS PRO Axial Fan Data Sheet
