RS PRO Axial Fan, 230 V ac, AC Operation, 497.8m³/h, 38W, 170mA Max, 172 x 150 x 51mm, Вентилятор

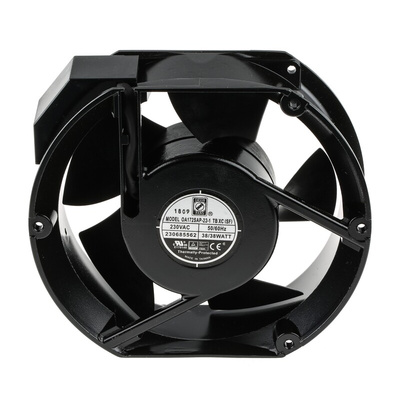

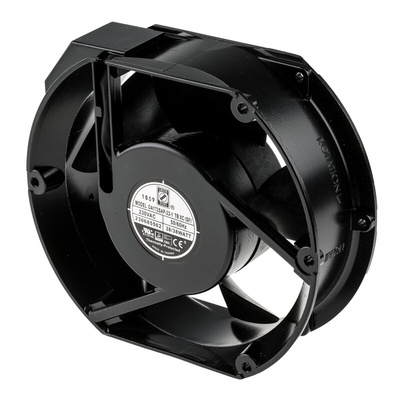

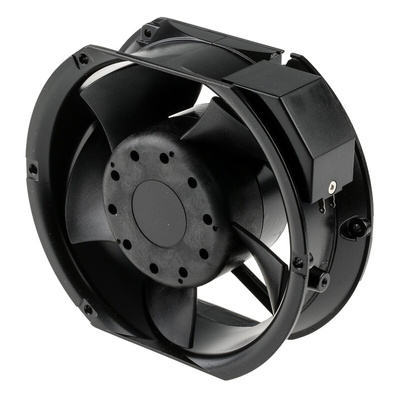

RS PRO AC Axial Fan, 497.8 m³/h, 230 V

If you need to optimise the performance of machinery that's prone to overheating, use this AC axial fan from RS PRO. It can circulate 497.8 m³/h (cubic metres per hour) of air, keeping both work areas and machinery cool.
This fan is salt fog rated to ensure a high level of resistance to rust and corrosion. It operates at a moderate noise level of 60 decibels (dB), the same as normal conversation, so it won't contribute to a loud, distracting workplace.
This product complies with the Restriction of Hazardous Substances (RoHS), meaning it has only trace elements of any potentially harmful materials. Fans like this are often applied to server racks, electrical cabinets and production line machinery.

Features and Benefits

• AC operation
• Air flow of 497.8 m³/h
• Dimensions of 150 (height) x 172 (width) x 55 mm (depth)
• Forward direction of curve
• Round fan housing shape
• Fan speed of 3400 rpm (revolutions per minute)
• Maximum current of 170 mA
• Noise level of 60 dB
• Power consumption of 38 W
• AC capacitor drive motor
• Dual ball bearing
• Thermally protected motor
• Static pressure of 0.9 in H2O
• Supply voltage of 230 V AC
• Lead wire termination type

The RS PRO AC Axial Fan uses electrical machinery to cool it down and keep it running smoothly. It has frame made of aluminium diecast and once installed it offers the perfect cooling solution with reliability and quality.

Capacitor Drive Motor
Dual Ball Bearing
Impedance Protected Motor
