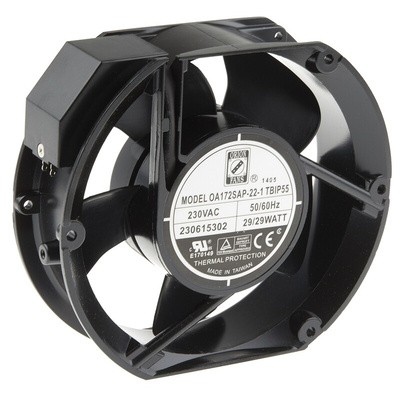

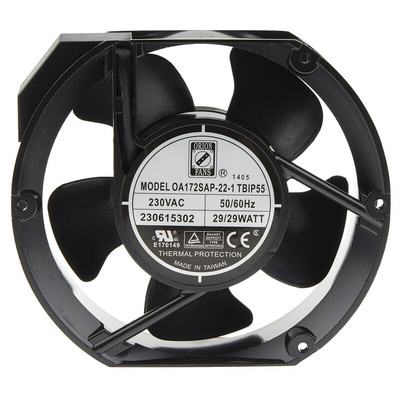

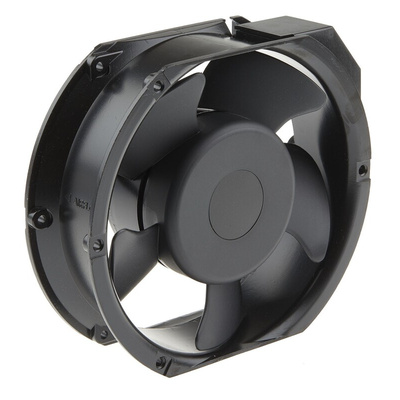

RS PRO Axial Fan, 230 V ac, AC Operation, 383.9m³/h, 29W, 120mA Max, IP55, 172 x 150 x 51mm, Вентилятор

RS PRO AC Axial Fan 383.9 m³/h, 230 V

Need a high-powered fan that won't create excessive noise in your workplace? Choose this AC axial fan from RS PRO. It uses circular blades to increase the airflow around your mechanical equipment to keep it running smoothly.
This fan operates at a noise level of just 58 decibels (dB), on a par with normal conversation, so it won't contribute to a loud or distracting work environment. Its frame is made of sturdy die-cast aluminium that keeps the fan securely fixed in place once installed.
The fan operates in temperatures of up to +80°C, meaning it can withstand the high heat caused by motors in constant use. It has an Ingress Protection (IP) rating of IP55, indicating it's sealed against water jets and harmful dust.

Features and Benefits

• AC operation
• Airflow of 383.9 m³/h
• Dimensions of 150 (height) x 172 (width) x 51 mm (depth)
• Backward direction of curve
• Round fan housing shape
• Fan speed of 3400 rpm
• Ingress Protection (IP) rating of IP55
• Maximum current of 120 mA
• Noise level of 58 dB
• Power consumption of 29 W
• AC capacitor drive motor
• Class B insulation
• Dual ball bearing
• Thermally protected motor
• Static pressure of 0.79 in H2O
• Supply voltage of 230 V AC
• Lead wire termination type

The RS PRO AC Axial Fan uses electrical machinery to cool it down and keep it running smoothly. It has frame made of aluminium diecast and once installed it offers the perfect cooling solution with reliability and quality.

Capacitor Drive Motor
Dual Ball Bearing
Impedance Protected Motor

RS PRO Datasheet
