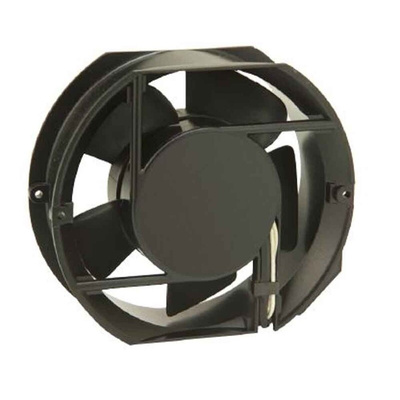

RS PRO Axial Fan, 230 V ac, AC Operation, 383.9m³/h, 29W, 120mA Max, 172 x 150 x 51mm, Вентилятор

RS PRO AC Axial Fan, 383.9 m³/h, 230 V

You can use this RS PRO axial fan to circulate large amounts of air in your workplace, keeping machinery cool and running smoothly. It has circular rotating blades that stimulate airflow while operating at a noise level of only 58 decibels (dB). This means its about as loud as normal conversation, so your work environment stays quiet.
The fan's die-cast aluminium frame is strong and durable to prevent it coming loose once installed. The device itself has been salt fog rated, meaning it resists rust and corrosion for a longer product life.
This fan has an operating temperature range of -30°C and +80°C, so it can cope with extreme conditions. It complies with the Restriction of Hazardous Substances (RoHS) and contains only trace amounts of any potentially harmful materials

Features and Benefits

• AC operation
• Airflow of 383.9 m³/h
• Dimensions of 150 (height) x 172 (width) x 51 mm (depth)
• Backward direction of curve
• Round fan housing shape
• Fan speed of 3400 rpm (revolutions per minute)
• Maximum current of 120 mA
• Noise level of 58 dB
• Power consumption of 29 W
• AC capacitor drive motor
• Dual ball bearing
• Thermally protected motor
• Static pressure of 0.79 in H2O
• Supply voltage of 230 V AC
• Lead wire termination type

The RS PRO AC Axial Fan circulate large amounts of air in your workplace, keeping machinery cool and running smoothly. The fan's die-cast aluminium frame is strong and durable to prevent it coming loose once installed. The device itself has been salt fog rated, meaning it resists rust and corrosion for a longer product life.

Dual ball bearing
Thermally protected motor
Lead wire termination type
