RS PRO Axial Fan, 230 V ac, AC Operation, 1699m³/h, 105W, IP56, 254 x 254 x 89mm, Вентилятор

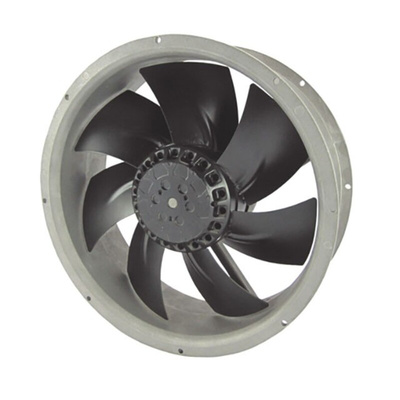

RS PRO AC Axial Fan, 1699 m³/h, 230 V

This AC axial fan from RS PRO uses circular rotating blades to increase the air circulation in your workplace. It has a very high airflow rate of 1699 m³/h, so it can handle large industrial spaces and heavy equipment prone to overheating.
This fan has a round shape, meaning it takes up less space despite its high power. The strong die-cast aluminium frame keeps the impellers securely fastened so they won't come loose even after a long working life of heavy use.
The fan has an Ingress Protection (IP) rating of IP56, indicating it's sealed against harmful dust and water jets. This makes it suitable for harsh industrial environments. Its operating temperature range of -30°C and +80°C means it can cope with extreme or outdoor conditions, as well as high heat from constantly-running motors.

Features and Benefits

• AC operation
• Airflow of 1699 m³/h
• Dimensions of 254 (diameter) x 89 mm (depth)
• Forward direction of curve
• Round fan housing shape
• Fan speed of 3250 rpm (revolutions per minute)
• Ingress Protection (IP) rating of IP56
• Noise level of 70 dB
• Power consumption of 105 W
• AC capacitor inductance motor
• Dual ball bearing
• Thermally protected motor
• Static pressure of 0.6 in H2O
• Supply voltage of 230 V AC
• Lead wire termination type

The RS PRO AC Axial Fan uses electrical machinery to cool it down and keep it running smoothly. It has frame made of aluminium diecast and once installed it offers the perfect cooling solution with reliability and quality.

Capacitor Drive Motor
Dual Ball Bearing
Impedance Protected Motor

RS PRO Axial Fan Data Sheet
