RS PRO Axial Fan, 230 V ac, AC Operation, 1002.4m³/h, 80W, IP56, 205 x 205 x 72mm, Вентилятор

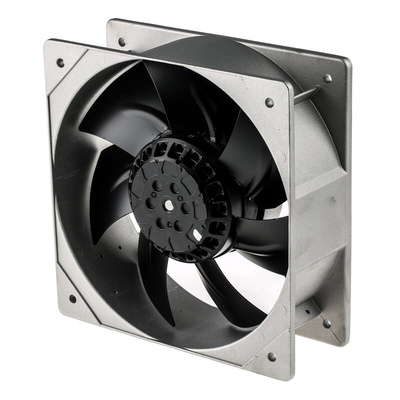

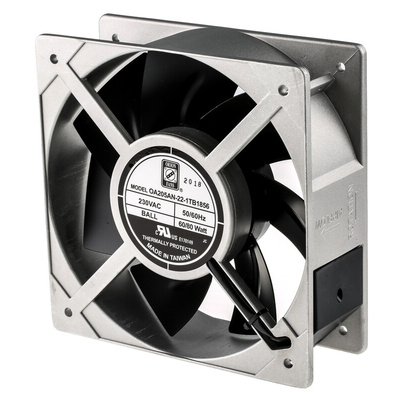

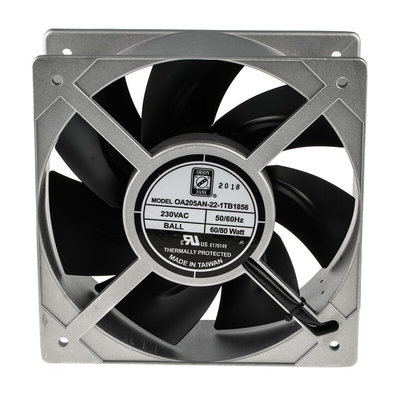

RS PRO AC Axial Fan, 1002.4 m³/h, 230 V

This RS PRO axial fan keeps your components cool and ensures ventilation by rotating and moving the air in a room. You can use it to prevent the overheating of motors and other instruments.
The lightweight frame allows for easy installation in higher locations or within walls. Four pre-drilled holes in the frame make setting it up quick and save you time and effort.
This product meets RoHS (Restriction of Hazardous Substances) specifications, meaning it contains only trace amounts of any materials that can harm your health. Its Ingress Protection (IP) rating of IP56 means the fan is sealed against harmful dust and strong water jets. This axial fan helps with ventilation and cooling in workshops and offices.

Features and Benefits

• AC operation
• Airflow of 1002.4 m³/h
• Dimensions of 205 (height) x 205 (width) x 72 mm (depth)
• Backward direction of curve
• Fan speed of 3000 rpm (revolutions per minute)
• Ingress Protection (IP) rating of IP56
• Noise level of 67 dB
• Power consumption of 80 W
• AC capacitor inductance motor
• Dual ball bearing
• Thermally protected motor
• Static pressure of 1.08 in H2O
• Supply voltage of 230 V AC
• Lead wire termination type

The RS PRO axial fan keeps your components cool and ensures ventilation by rotating and moving the air. It can be used to prevent the overheating of motors and other instruments. This RS PRO 80 W AC axial fan has fan speed of 3000 RPM and operates at 230 V AC. It also has a dual ball bearing system.

205 mm height
205 mm width
72 mm depth
1002.4m³/h air flow
67dB noise level
Backward direction of curve
RoHS compliant
RS PRO approved
3 years warranty
