2TLA020051R5100, ABB Jokab Safety Rated Interlock Switch, PBT, Interlock Lock, Выключатель

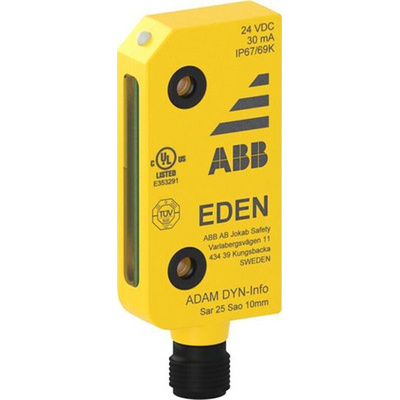

ABB Jokab Interlock Switch

The ABB Jokab Eden series safety rated interlock switch has a voltage rating of 24VDC to 30VDC and a maximum current rating of 4A. It consists of two-part Eva and Adam. This safety unit has a 360-degree mounting possibility along with a compact size that makes it easy to use in most applications. It lets you connect several safety products in a series using one channel maintaining PL e. You can connect up to 30 Adam DYN in a series to Vital and up to 10 Adam DYN in a series to 1 input of Pluto. You can connect all the products using the DYNlink signal in a series, as well as, mixed in the same loop with a maintained PL e.

Features and Benefits

Reduce downtime
No wear
No mechanical breakage
Easy to install
Local reset function
Operating temperature ranges between -40°C and +70°C
Suitable in harsh environments

Applications

Doors and safe position monitoring

Certifications

CE certified
CULus listed
IP69K rated

Datasheet
