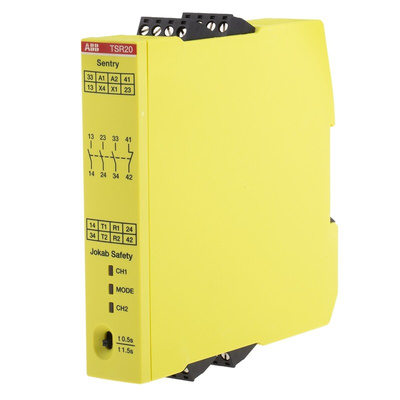

2TLA010061R0000 Sentry TSR20 24VDC, ABB Jokab Dual-Channel Safety Switch Safety Relay, 24V dc, 4 Safety Contacts, Реле безопасности

ABB Jokab Safety Relay, 3 Auxiliary Contacts, Screw Terminals - Sentry TSR20 Series - 2TLA010061R0000

Keep your staff and hardware in safe hands with this safety relay from ABB Jokab. It's designed to detect electrical faults and breaks the circuit until operating conditions are safe, preventing machine damage and electric shock. You can use the switch on the front to set an OFF-delay time of 0.5 or 1.5s, helping to power down your equipment safely. For added convenience, the unit features a multi-reset function that lets you reset multiple connected relays at the press of a button.

Features & Benefits

• Wide operating temperature range between -25°C and +65°C for use in demanding environments
• Compact dimensions of 120 (L) x 22.5 (W) x 120mm (D) for installation in areas with limited space
• Rated control supply voltage of 24V DC for use in low-power systems
• IP20 rating means it's finger-safe and protected against objects larger than 12mm

Applications

• Industrial automation
• Manufacturing equipment
• Pharmaceutical industry

How do I wire this safety relay?

This safety relay uses screw terminals, so you can use a screwdriver to secure your wires in place.

Datasheet

Line Drawing - Sentry Safety Relays

Instruction Sheet - TSR20M

Datasheet - 2TLA010061R0000 Sentry TSR20 24VDC
