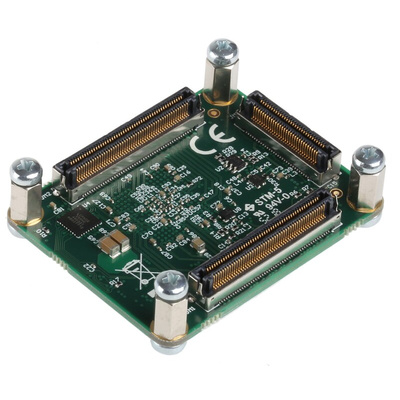

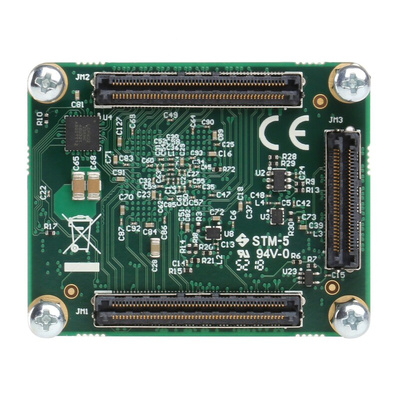

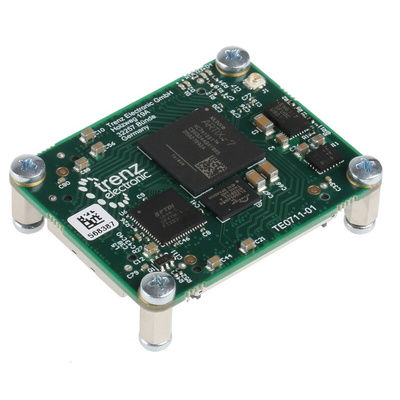

Trenz Electronic GmbH TE0711-01-100-2C High IO Xilinx Artix-7 100T Module with speedgrade 2C and USB Module TE0711-01, Модуль

Trenz Electronic GmbH Programmable Logic Development Kits

The Trenz electronic is an FPGA module integrating a Xilinx Artix-7 100T FPGA, 32Mb Quad SPI flash memory for configuration and operation. It has powerful switch-mode power supplies for all on-board voltages. The rugged high-speed stacking strips provide a large number of configurable I/Os. All this on a tiny footprint, smaller than a credit card. It has an electric rating of either 3.3V or 3.3V and 5V. It is used for industrial applications.

Features and Benefits:

• 100MHz MEMS oscillator
• AES bit-stream encryption
• Dual 100MBit Ethernet
• eFUSE bit-stream encryption
• Evenly spread supply pins for good signal integrity
• It has 200MHz speed
• Lead free
• MAC address EEPROM
• on-board high efficiency DC-DC converters
• Operating temperature ranges between 0°C and 70°C
• Plug-on module with two 100-pin hermaphroditic stacking strips
• Rugged for shock and high vibration
• Single-ended FPGA I/O pins available on B2B strips Up to 112
• System management and power sequencing

Certifications:

• WEEE

Datasheet
