RS PRO Fitting Fitting, Переходник

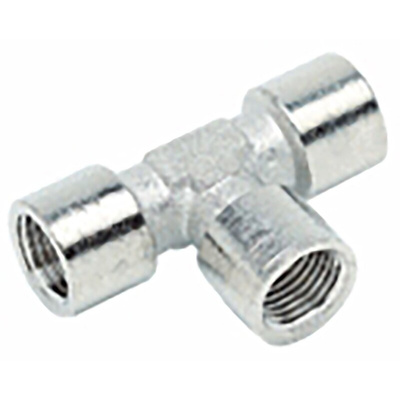

RS PRO Brass 50 bar Pneumatic Tee Threaded Adapter, G 1/2 Female to G 1/2 Female

This RS PRO tee threaded adapter allows you to connect tubes in three directions. It's made of nickel-plated brass, so it's tough enough for industrial environments. This material is corrosion-resistant too and able to withstand toxic metals such as lead and chromium, so it's well-suited for transferring contaminated industrial water.
Each end has a G 1/2 female thread surrounded by thick brass on the outside. This strengthens the part and ensures the threads can resist any strain applied to the connecting tubes. This adapter handles pressures up to 50 bar and a maximum temperature of +300°C, so it's commonly used in factory machinery and plumbing. It's also a Restriction of Hazardous Substances (RoHS) certified part, which means it contains only minimal amounts of any harmful materials.

Features and Benefits

• Female thread size of G 1/2 (connector A and B)
• Female branch connector thread size of G 1/2
• Brass material
• Nickel-plated finish
• Maximum operating pressure of 50 bar
• Maximum operating temperature of +300°C
