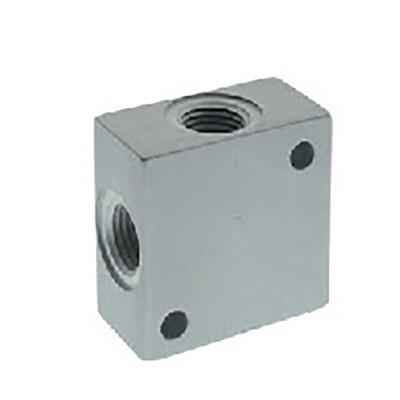

RS PRO Tee Threaded Adaptor, G 1/4 Female to G 1/4 Female, 100 bar

This RS PRO tee threaded adaptor is made to connect pipes carrying gas, fluid or steam. It's commonly used in industrial settings for applications such as directing the flow of water to more than one piece of equipment or to multiple workspaces.
The body is made of aluminium that's nickel-plated to increase its durability and improve corrosion resistance, so you can use it in a wide range of demanding work environments. It has four G 1/4 female threads and two pre-drilled holes so you can configure the adaptor in multiple ways. With an operating pressure of 100 bar, this adaptor is well-suited for high-pressure applications, such as compressed air cleaning. The part is Restriction of Hazardous Substances (RoHS) certified too, meaning it contains only minimal amounts of any harmful materials.

Features and Benefits

• Female thread size of G 1/4
• Four-way threaded pneumatic adaptor
• Maximum operating pressure of 100 bar
• Maximum operating temperature of +300°C
• Nickel-plated aluminium body
