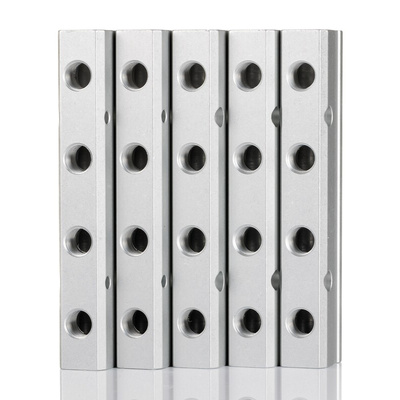

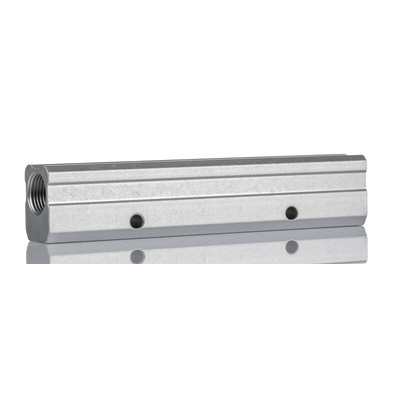

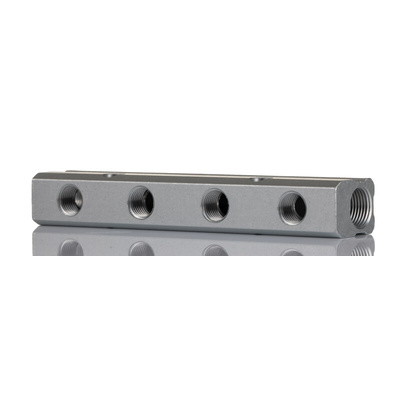

RS PRO 4 Outlet Manifold, G 3/8 G 1/4, Фитинг

RS PRO 4 Outlet Ports Aluminium Pneumatic Manifold Tube-to-Tube Fitting 1/4 in Female

Use this RS PRO manifold to create a junction in your pneumatic system. It has four threaded holes to make it easy to connect multiple tubes or hoses to a single channel.
This manifold is made from aluminium, for a lightweight and corrosion-resistant join. The two inlets have a 3/8 inch British Standard Pipe (BSP) thread size and the outlets have a 1/4 inch BSP thread size for easy connection to valves, pipes and hoses.
Thanks to its maximum operating pressure of 75 bar and maximum operating temperature of +300°C, this manifold is suitable for a wide range of industrial systems and equipment. Use it in pneumatic and hydraulic automation applications such as industrial water circuits and air cooling systems.

Features and Benefits

• Two inlet ports
• Four outlet ports
• 3/8 in female threaded inlet ports
• Inlet port thread size of 3/8 in (BSP)
• 1/4 in female threaded outlet ports
• Outlet port thread size of 1/4 in (BSP)
• Aluminium
• Maximum operating pressure of 75 bar
• Maximum operating temperature of +300°C
• Complies with 1907/2006 (REACH), PED 2014/68/UE
