RS PRO Push-in Fitting, G 1/4 Female to Push In 6 mm, Threaded-to-Tube Connection Style, Прямой фитинг

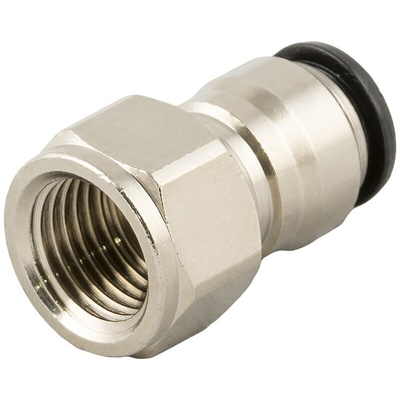

RS PRO Straight Threaded Adaptor, G 1/4 Female to Push In 6 mm, 20 Bar

With these adaptors from RS PRO you can quickly connect pipes to compressed air or gas-operated machinery. They're suitable for harsh environments so can be used with pneumatic factory equipment.
These adaptors are made from high-quality nickel-plated brass which has excellent resistance to corrosion so they won't rust. This metal is also extremely strong, which means it's capable of withstanding the high pressure levels needed in pneumatic machinery. The rubber seals are anti-static so dirt particles won't stick to their surface and contaminate your compressed air, which could lead to equipment damage.
Connectors like these can also be used with air-driven hand tools, like paint sprayers. They're approved by the Pressure Equipment Directive (PED) 2014/68/EU (European Union), which make them safe to use in compressed air applications of up to 20 bar.

Features and Benefits

• Brass body material
• Threaded-to-tube connection style
• Connector A is a female G 1/4 type
• Connector B is a push-in connector 6 mm type
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Inline mounting type
• Straight threaded adaptor pneumatic fitting type
• Standards met of 1907/2006 (REACH), ISO 14743:2004, PED 2014/68/UE
