RS PRO Push-in Fitting, Push In 8 mm to Push In 8 mm, Tube-to-Tube Connection Style, Переходник

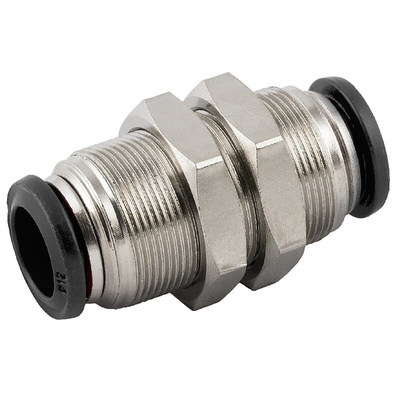

RS PRO Bulkhead Tube-to-Tube Adaptor, Push-In 8 mm to Push-In 8 mm, 20 Bar

Use these adaptors from RS PRO to make a secure join between compressed air or gas tubes. They're compatible with hoses found in pneumatic machinery, such as automotive manufacturing equipment.
The seals are perfect for high-pressure applications, like pneumatic automation or food packaging, as they provide an airtight join that doesn't let gas escape or inhibit its flow. This means your compressed air system will reliably maintain its pressure. The units are made from nickel-plated brass which won't rust as it has excellent resistance to corrosion. This metal is light yet durable so can withstand harsh working conditions while still offering a long service life.
Connectors like these are suitable to use with air-powered hand tools, such as angle grinders. They're Restriction of Hazardous Substances (RoHS) compliant so contain only minimal amounts of any harmful materials.

Features and Benefits

• Brass body material
• Tube-to-tube connection style
• Connector A is an 8 mm push-in type
• Connector B is an 8 mm push-in type
• Nickel-plated finish
• Maximum operating pressure of 20 bar
• Operating temperature of -20°C to +80°C
• Bulkhead tube-to-tube adaptor pneumatic fitting type
• Brass thread material
