RS PRO Push-in Fitting, Push In 6 mm to Push In 6 mm, Tube-to-Tube Connection Style, Фитинг

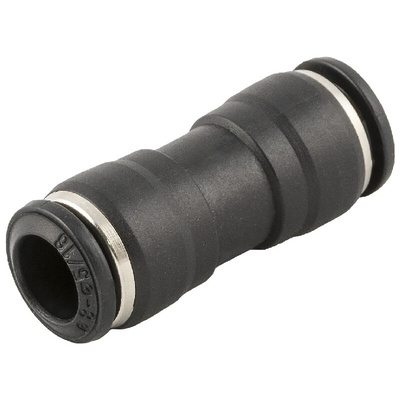

RS PRO Straight Tube-to-Tube Adaptor, Push In 6 mm to Push In 6 mm, 20 Bar

Join two pneumatic tubes together with this push-in adaptor from RS PRO. It's manufactured to withstand the high-pressure demands of compressed air applications such as automated packaging.
The body of this unit is made from technopolymer, a lightweight but robust plastic. This means the adaptor isn't likely to crack, even under extreme conditions. It also won't melt when exposed to high temperatures, so it's safe to use near hot components. The push-in connectors on either end make it easy to install without the need for additional tools.
This adaptor contains only minimal levels of any harmful substances so is Restriction of Hazardous Substances (RoHS) compliant. It's a good choice for use with robotic machinery, as its seals are silicone-free and won't attract electrostatic discharge that could damage sensitive electrical components.

Features and Benefits

• Tube-to-tube connection style
• 6 mm push-in to 6 mm push-in connector
• Maximum operating pressure of 20 bar
• Minimum operating temperature of -20°C
• Maximum operating temperature of +80°C
• Straight tube-to-tube adaptor pneumatic fitting type
