RS PRO Push-in Fitting, G 1/4 Male to Push In 8 mm, Threaded-to-Tube Connection Style, Угловой фитинг

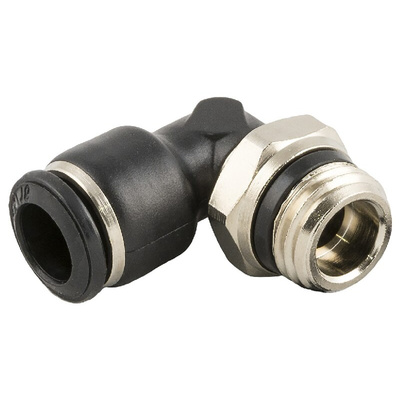

RS PRO Elbow Threaded Adaptor, G 1/4 Male to Push-In 8 mm, 20 bar

Need to connect a pressure gauge to a compressed air supply? This adaptor from RS PRO has a push-in hose port so you can quickly attach equipment to pneumatic pipelines without additional tools.
The adaptor's brass screw-in connection port is durable and provides a long service life. Its seals are designed to provide an air-tight connection, regardless of the directional flow of gases so this adaptor is suitable for use in vacuums.
The connector is handy for joining pneumatic pipes to air-powered tools with strong vibrations such as chipping hammers. You can also use it as a pneumatic hose adaptor in factories and workshops where compressed gas-operated machinery is present.

Features and Benefits

• Angle of 90°
• Threaded-to-tube connection style
• Connector A is a male, G 1/4 type
• Connector B is an 8 mm push-in type
• Maximum operating pressure of 20 bar
• Maximum operating temperature of +80°C
• Minimum operating temperature -20°C
• Elbow threaded adaptor pneumatic fitting type
• Complies with 1907/2006 (REACH), ISO 14743:2004 and PED 2014/68/UE standards
• Swivel connection
• Brass thread material
• G 1/4 male threaded connection
• Push in 8 mm tube connection
