RS PRO Push-in Fitting, M5 Male to Push In 4 mm, Threaded-to-Tube Connection Style, Угловой фитинг

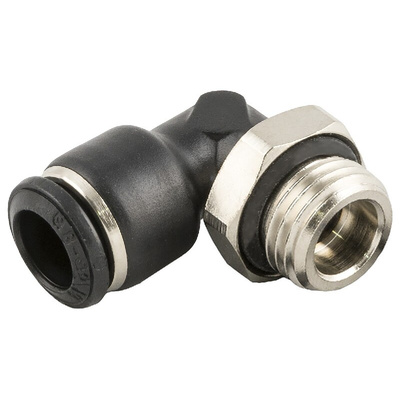

RS PRO Elbow Threaded Adaptor, M5 Male to Push-In 4 mm, 20 bar

Securely fit hoses to pneumatic equipment with this elbow threaded adaptor from RS PRO. It swivels in a full circle so you can effectively align pressure connection ports and equipment.
Thanks to its right-angle design, this adaptor also reduces the need to bend hoses, eliminating the risk of damage. Its seals provide an airtight join so you can rest assured you'll get constant pressure without contaminants entering your compressed air or gas supply.
You can use the adaptor to attach valve controlling tubes or to connect a compressed gas supply to air-driven tools. The robust make-up of this unit makes it suitable for harsh applications such as factory automation.

Features and Benefits

• Angle of 90°
• Threaded-to-tube connection style
• Connector A is a male, M5 type
• Connector B is a 4 mm push-in type
• Maximum operating pressure of 20 bar
• Maximum operating temperature of +80°C
• Minimum operating temperature -20°C
• Elbow threaded adaptor pneumatic fitting type
• Complies with 1907/2006 (REACH), ISO 14743:2004 and PED 2014/68/UE standards
• Swivel connection
• Brass thread material
• M5 male threaded connection
• Push-in 4 mm tube connection
