RS PRO Push-in Fitting Push In 6 mm, Push In 8 mm to Push In 8 mm, Tube-to-Tube Connection Style, Фитинг

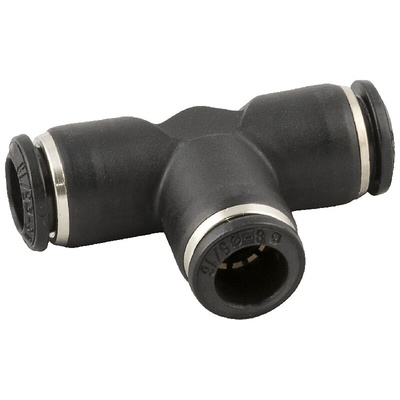

RS PRO Tee Tube-to-Tube Adaptor, Push-In 6 mm to Push-In 8 mm to Push-In 8 mm, 20 Bar

Connect more than one pneumatic tool to a single compressed air or gas supply with this tube-to-tube adaptor from RS PRO. It's manufactured from tough technopolymer, so it's ideal for industrial environments.
The three-way connector has silicone-free seals that discourage dirt from sticking to the surface. This reduces the likelihood of contaminants entering your compressed air supply when connecting or removing a hose. Each adaptor port is fitted with a washer to protect the hose outlets from wear. You don't need tools to use this part either, thanks to its push-in style connectors.
It's compliant with the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH), which means it's free of harmful materials. A tee adaptor is commonly used for diverting the flow of gas in a pneumatic system, such as compressed air cleaning tools.

Features and Benefits

• Branch tube connector diameter of 6 mm
• Connector A and B diameter of 8 mm
• Push-in connections
• Pneumatic tee tube-to-tube adaptor
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Standards met of Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) 1907/2006, International Organisation of Standardisation (ISO) 14743:2004 and Pressure Equipment Directive (PED) 2014/68/UE
