RS PRO Push-in Fitting, Push In 8 mm to Push In 6 mm, Tube-to-Tube Connection Style, Фитинг

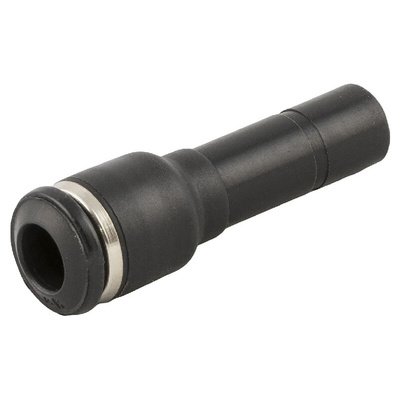

RS PRO Straight Tube-to-Tube Adaptor, Push In 8 mm to Push In 6 mm, 20 bar

Use this RS PRO straight tube-to-tube adaptor to connect your air pipes. It's made of durable and impermeable technopolymer, so you don't need to worry about leaks.
The piece features push-in fittings for easy connection and removal of tubes. It can handle air and fluid temperatures ranging from -20°C to +80°C, so you can use it in a wide range of environments. Its silicone-free material makes it easy to clean and ensures dust and dirt doesn't stick to it.
The component contains only minimal levels of any harmful materials as it's a RoHS (Restriction of Hazardous Substances) certified part. Its high resistance to impact and pressure makes it ideal for use in industrial environments, such as warehouses and factories.

Features and Benefits

• Straight tube-to-tube pneumatic adaptor
• Connector A has a diameter of 8 mm
• Connector B has a diameter of 6 mm
• Push-in connectors
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C

RS PRO Datasheet

Pneumatic Linecard

RS PRO Pneumatics Range Overview
