RS PRO Push-in Fitting, G 1/8 Male to Push In 6 mm, Threaded-to-Tube Connection Style, Прямой фитинг

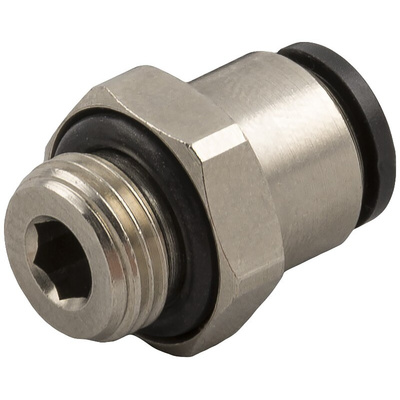

RS PRO Straight Threaded Adaptor, G 1/8 Male to Push-In 6 mm, 20 bar

This RS PRO straight-threaded adaptor is for connecting tubing that carries air or liquid. It's made of nickel-plated brass, which is resistant to corrosion and has an operating temperature range of -20°C to +80°C, so it's suitable for a wide range of industrial applications.
The G 1/8 male thread comes with a washer, which helps to prevent leaks. The whole unit is tested to withstand 20 bars of pressure too, so you can use it in demanding situations, such as spraying compressed air or paints.

Features and Benefits

• Brass body material
• Straight pneumatic threaded-to-tube adaptor
• Connector A is a male G 1/8 type
• Connector B is a 6 mm push-in type
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Inline mounting type
• Standards met include Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) 1907/2006, International Organisation of Standardisation (ISO) 14743:2004 and Pressure Equipment Directive (PED) 2014/68/UE
