RS PRO Push-in Fitting, M5 Male to Push In 4 mm, Threaded-to-Tube Connection Style, Угловой фитинг

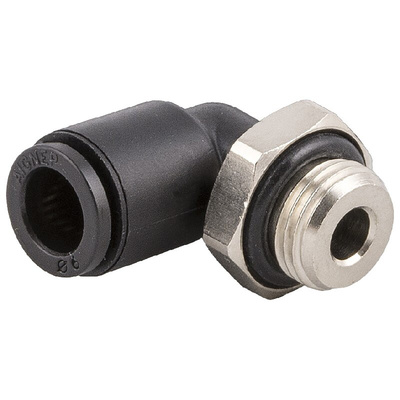

RS PRO Elbow Threaded Adaptor, M5 Male to Push In 4 mm, 20 bar

This RS PRO elbow threaded adaptor makes it easy to install tubing around corners or inside confined spaces. It features a swivel connection, so it's frequently used in situations where you want to prevent twists and kinks in tubing.
The part is made of brass and technopolymer material, both of which are highly resistant to chemicals. The adaptor also withstands a temperature range of -20ºC to +80ºC and maximum pressure of 20 bar, making it well-suited for a wide range of environments. It's Restriction of Hazardous Substances (RoHS) compliant, meaning it contains only minimal levels of any harmful materials.

Features and Benefits

• Angle of 90º
• Elbow threaded-to-tube pneumatic adaptor
• Male threaded connection size of M5
• Push-in connection diameter of 4 mm
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Swivel connection
• Brass thread material
• Standards met of Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) 1907/2006, International Organisation of Standardisation (ISO) 14743:2004 and Pressure Equipment Directive (PED) 2014/68/UE
