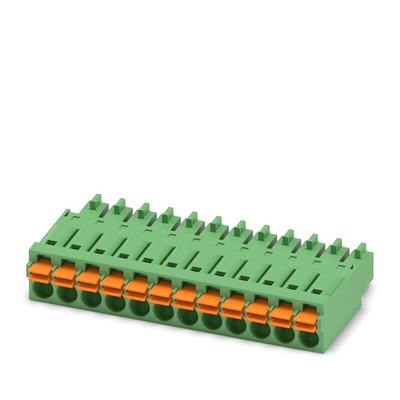

1952364, Phoenix Contact 3.5mm Pitch 12 Way Pluggable Terminal Block, Plug, Panel Mount, Spring Cage Termination

1761423
Номер производителя: 1952364Производитель: Phoenix Contact
Цена за шт.
3654.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact PCB Terminal Block, 12 Positions, 8A Current Rating - FMC 1,5/12-ST-3,5 - 1952364

Need a safe line of communication between wires and your PCB-connected components? Choose this terminal block from Phoenix Contact to smooth the path. It has 12 contact positions, giving you control over multiple circuits at the same time and reducing the wiring needs of your setup. The contacts are made of durable copper alloy, which resists corrosion to give you long-term performance. Thanks to polyamide housing, this piece of kit takes wear and impact in its stride, so it's a reliable choice for harsh environments.
The unit has compact dimensions of 21.9 (L) x 42.75 (W) x 7.75mm (H), meaning it slots neatly into setups with limited space. A pitch of 3.5mm between contacts provides safe room for the wires to connect without touching each other. This prevents short circuits and fire outbreaks. You'll find components like this used in the consumer electronics industry.

• UL 94-V0 rating shows that it stops burning in 10 seconds or less in the event of a fire
• 2.5kV rated surge voltage to handle sudden power spikes without experiencing damage
• Push-in connection is simple doesn't need tools, saving you time and hassle

PCB connector, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 12, pitch: 3.5 mm, connection method: Push-in spring connection, colour: green, contact surface: Tin

Техническая спецификация
pdfDatasheet
pdfLine Drawing - 1952364
Кол-во контактов:
12
Количество рядов:
1
Концевая заделка:
Spring Cage
Материал:
Полиамид
Номинал тока:
8A
Номинальное напряжение:
320 В
Ориентация корпуса:
Прямой
Серия:
FMC 1.5/12-ST-3.5
Тип монтажа:
Крепление на панель
Тип съемного клеммного блока:
Plug
Цвет:
Зеленый
Шаг:
3.5мм
