1827596, Eaton 3.81mm Pitch 8 Way Pluggable Terminal Block, Feed Through Header, Panel Mount, Solder/Slip on Termination

1761457
Номер производителя: 1827596Производитель: Eaton
Цена за шт.
3712.80 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

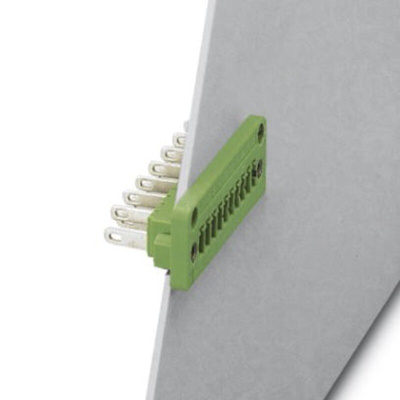

Phoenix Contact Feed Through Terminal Block, Panel Mounting, 18ms Shock Duration - DFK-MC 1,5/ 8-GF-3,81 - 1827596

Want to simplify PCB wiring? Get the job done easily with the help of this feed-through terminal block from Phoenix Contact. It has an 8-position design, so you'll have enough room to connect multiple conductors to your board. As it has highly conductive copper alloy contacts, the unit swiftly passes along power and signals between circuits in your system.
Its insulating PA body is always at the ready to fend off potential electric hazards, keeping you safe from shocks and minimising damage to downstream components. Thanks to its broad operating temperature range of -40°C to +100°C, you can rest assured this unit can deal with harsh conditions. With a shock duration capacity of18ms, it's a stable workmate that will see your system through the tough times.

Features & Benefits

• Straight body orientation for easy front-facing mounting
• UL 94 V0 flammability rating to keep fire from spreading
• Tin contact plating is resistant to corrosion for durability
• Built-in pins for convenient soldering of conductors
• 160V Categoria III/3 320V Categoria II/2
• Low contact resistance of 2.2mΩ to support a stable electrical connection

Техническая спецификация
pdfDatasheet
pdfDimension Sheet - 1827596
pdfCatalogue - Terminal Block
Кол-во контактов:
8
Количество рядов:
1
Концевая заделка:
Solder/Slip on
Материал:
PA (Insulate)
Номинал тока:
8A
Номинальное напряжение:
160V Categoria III/3, 320V Categoria II/2
Ориентация корпуса:
Прямой
Серия:
DFK-MC 1.5/ 8-GF-3.81
Тип монтажа:
Крепление на панель
Тип съемного клеммного блока:
Feed Through Header
Цвет:
Зеленый
Шаг:
3.81мм
