RS PRO Push-in Fitting, G 1/4 Male to Push In 10 mm, Threaded-to-Tube Connection Style, Прямой фитинг

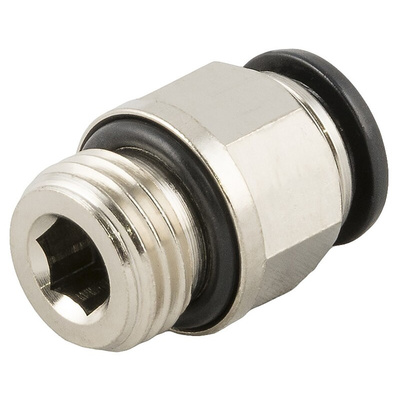

RS PRO Straight Threaded Adaptor, G 1/4 Male to Push-In 10 mm, 20 bar

This RS PRO straight threaded adaptor provides you with a means to connect pipes in a fluid or air system. It features a quick-to-use, push-in style connection on one end, so it's often used in setups where regular maintenance is required.
Integrated into the component are nitrile butadiene rubber (NBR) seals, which means it's able to withstand high vibration applications without failure. This adaptor has a wide temperature range of -20ºC to +80ºC, so you can use it in a multitude of demanding environments, from inside cold-storage units to outdoor workshops. Its durability and easy-to-use features make it an indispensable tool for pneumatic automation. This part is Restriction of Hazardous Substances (RoHS) certified too, meaning it contains only minimal amounts of any harmful materials.

Features and Benefits

• Brass body material
• Straight threaded adaptor
• Connector A is a male G 1/4 type
• Connector B is a 10 mm push-in type
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Inline mounting type
• Standards met of Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) 1907/2006, International Organisation of Standardisation (ISO) 14743:2004 and Pressure Equipment Directive (PED) 2014/68/UE
