RS PRO Push-in Fitting, G 3/8 Male to Push In 10 mm, Threaded-to-Tube Connection Style, Прямой фитинг

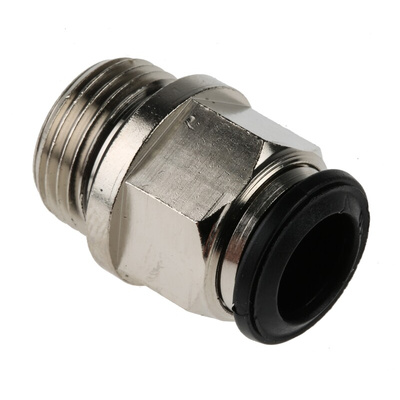

RS PRO Straight Threaded Adaptor, G 3/8 Male to Push-In 10 mm, 20 bar

The RS PRO adaptor features a male 3/8-inch G standard thread and a push in 14 mm connector for establishing a secure, airtight link between fittings and pipes. The push-in fittings are easy to connect and disconnect, so they're great for areas where quick, regular adjustments need to be made.
It's made of nickel-plated brass, which is durable and corrosion-resistant. This means it will withstand a wide range of demanding applications. This unit is silicone-free too, which prevents contamination during fluid transfer. Its durability and compatibility with a wide range of fluids make it an ideal choice for pneumatic parts in vehicles.

Features and Benefits

• Nickel-plated brass body
• Straight threaded adaptor
• Connector A is a male G 3/8 type
• Connector B is a 10 mm push-in type
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Inline mounting type
• Standards met include Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) 1907/2006, International Organisation of Standardisation (ISO) 14743:2004 and Pressure Equipment Directive (PED) 2014/68/UE
